4X8 HDPE Composite Plastic Ground Protection Temporary Construction Road Mats

Key attributes

Industry-specific attributes

Processing Service
Cutting, Moulding

Other attributes

Place of Origin
Shandong, China

Brand Name
Temporary Access Road Mat
Model Number
heavy duty temporary road mat
Material
HDPE




Thickness
12mm,15mm,38mm,50mm




Size
1220x2440,3000x2500,4000x2000,2000x1000




Material
High Density Polyethylene




Product name
HDPE Ground Mat




Color
Black,White,Yellow,Blue,Red




Application
Construction Site




Size
1220x2440,3000x2500,4000x2000,2000x1000




Service
OEM\ODM




Keyword
Ground Track Mat




Feature
Eco-friendly




Density
0.96-0.97




Surface finish
Custom Surface Texture



Packaging and delivery

Packaging Details
carton plus stretch film, pallets, wood packaging and any packaging can be made according to customer requirement.Polyethylene Plastic Sheet




Port
Qingdao




Selling Units:
Single item




Single package size:
20X20X0.3 cm




Single gross weight:
1.630 kg



Supply Ability

Supply Ability
10000 Ton/Tons per Month

Availability:
Quantity:
Products Description
Product Name: HDPE ground protection mat/Composite Polymer Rig Mats for Oil Drilling/Temporary Access Road Mat
Material:High-density Polyethylene
Color:Any color is available
Grade:100% Pure Raw Material/Recycled UHMWPE

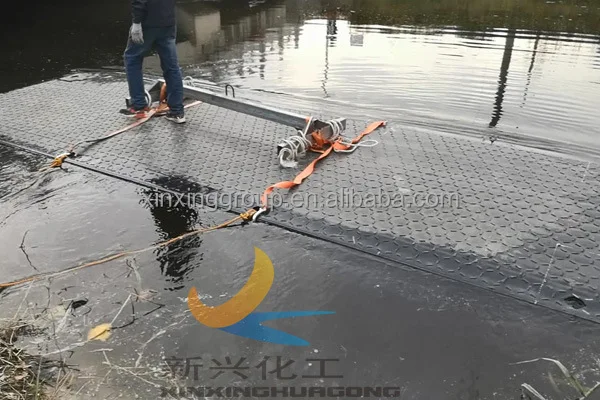

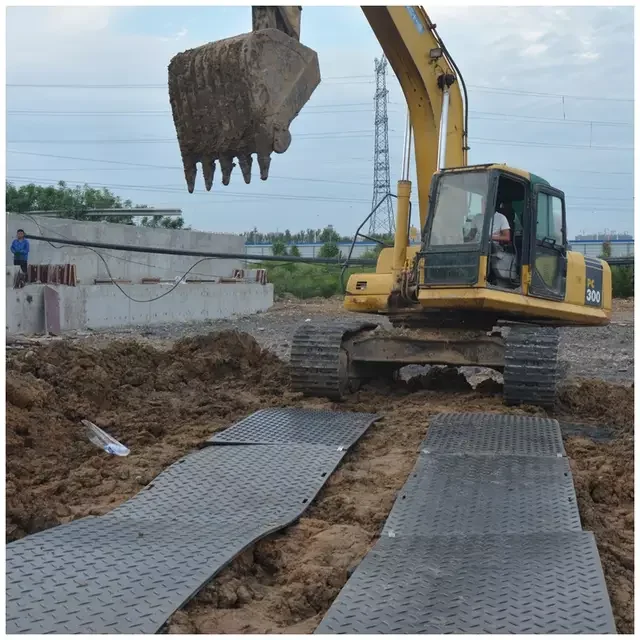

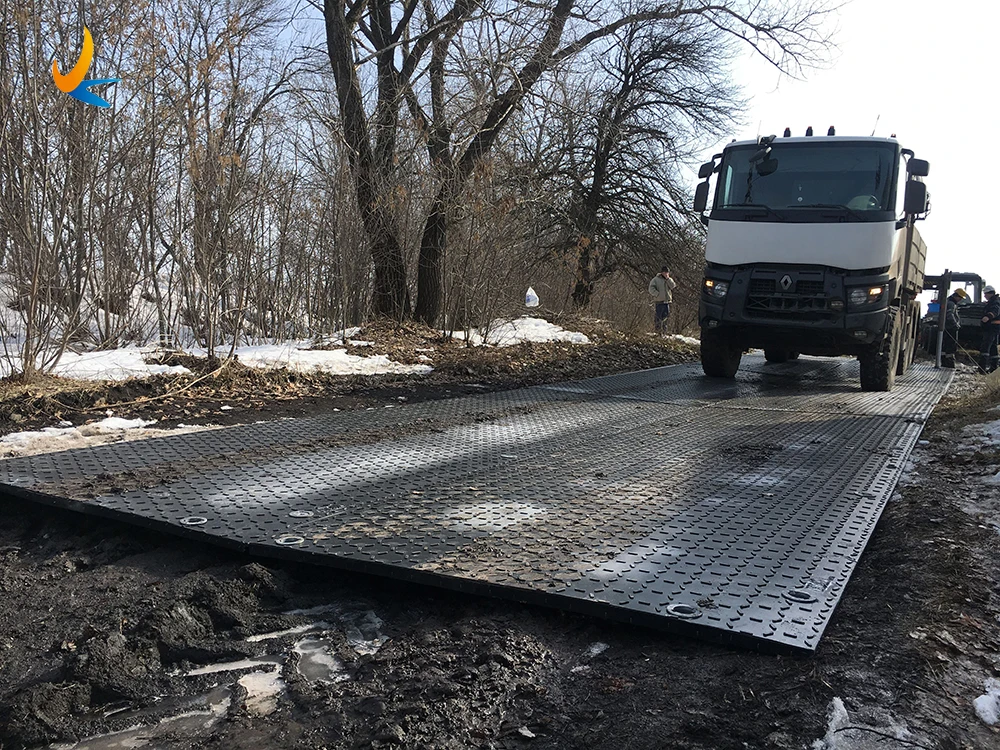

XinXing Ground Protection Mats Creates an in stant roadway over virtually any type of terrain mud,sand,marshy,uneven or soft terrain. HDPE ground protection mats is tested in extremes of hot and cold climates and extremely durable to withstand vehicle weights up to 80 tons.

Standard size is 1220x2440mm(4x8ft),it also can be cut to size as your requirement.
Thickness can be:12.7mm,15mm,20mm,38mm,etc.

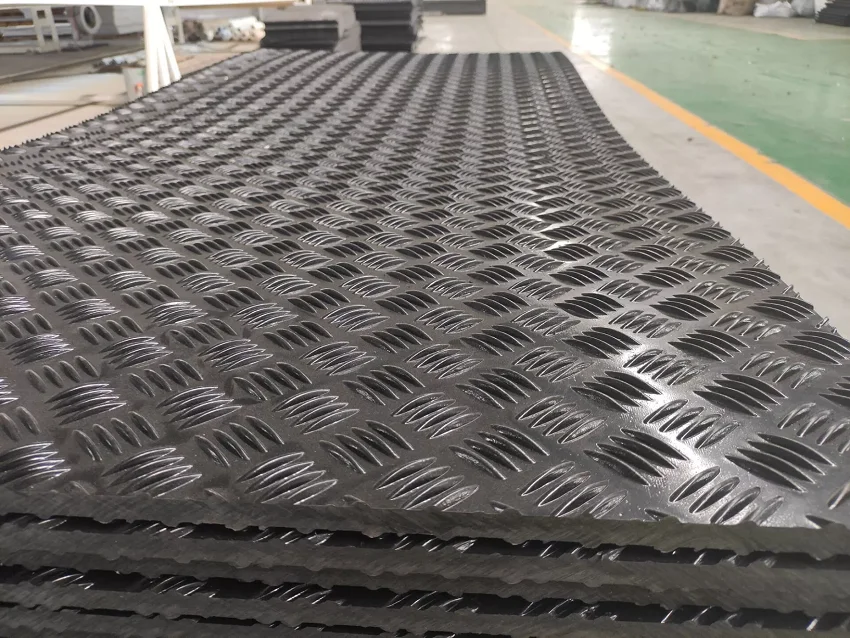

Extruded HDPE Construction Road Mat(4 Types surface all can be available)

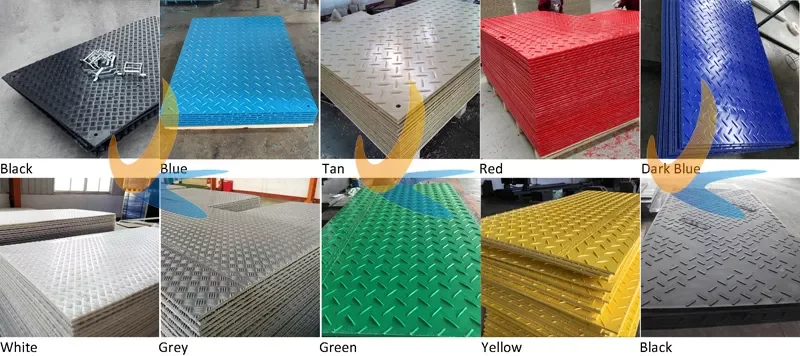

Any color can be available:

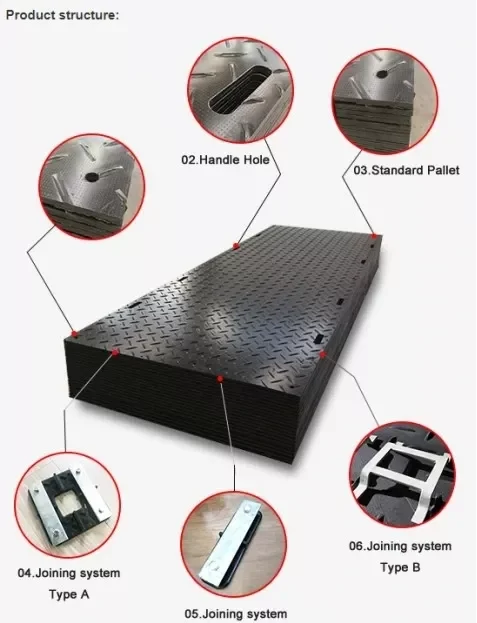

Specification of 4 Types of Surface and Ground Mat Connectors:

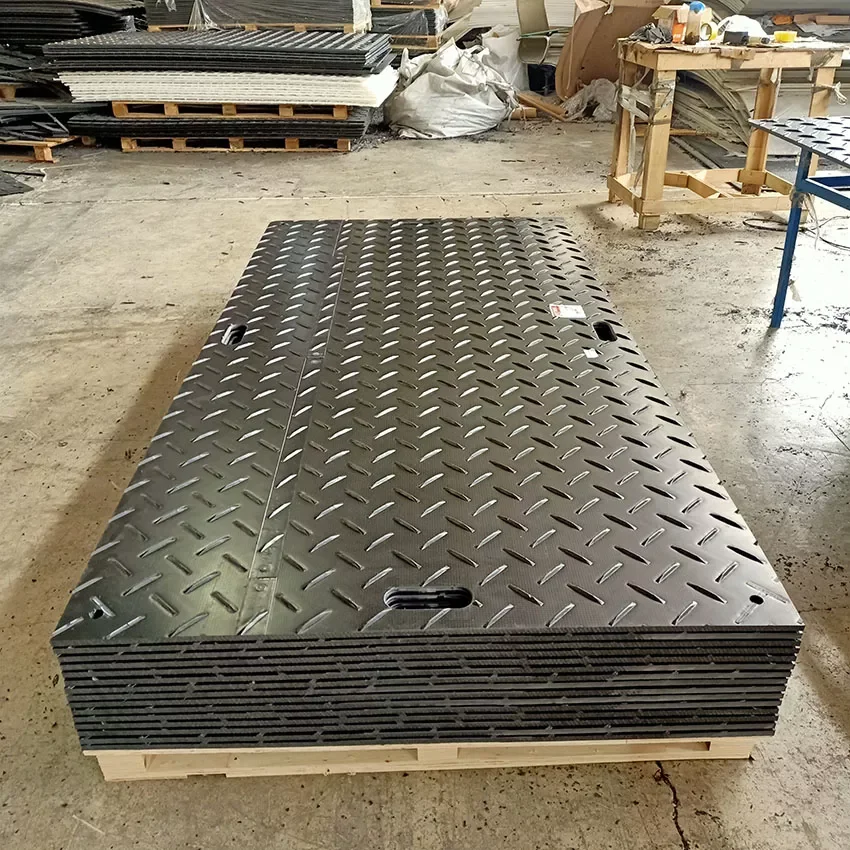

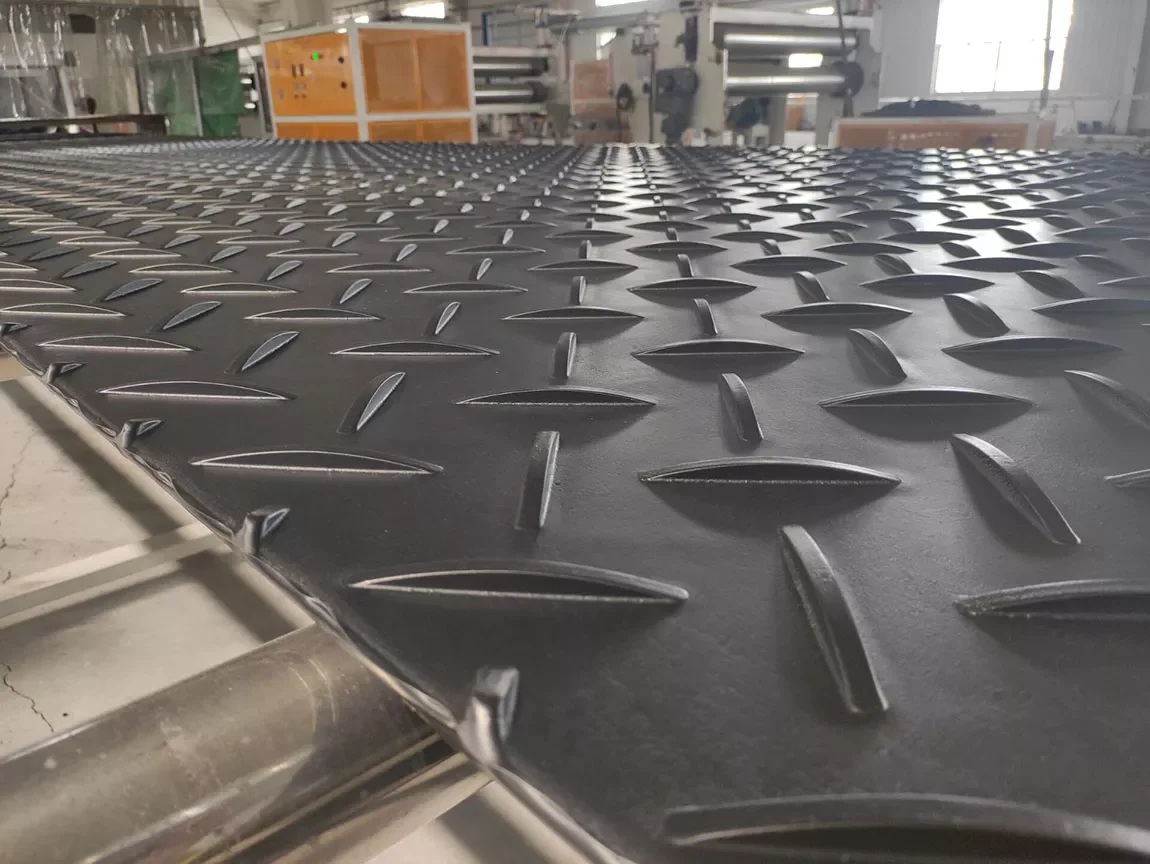

XINXING ground protection mat is a high load capacity mat boasting an aggressive diamond plate tread design and a high load capacity ideal for use over soft or sensitive ground conditions in the construction, civil engineering, groundwork, and events industries. These rugged recycled poly gound mats are made of 12.7 mm thick polyethylene making them virtually indestructible.

XINXING ground protection mat are perfect for light and medium-duty jobs. They are designed for turf protection, rutting
prevention,weight distribution, and a myriad of other construction applications.

XINXING Ground Protection Mat can be easily deployed and maneuvered without any special equipment with the added optional convenience of strategically positioned hand holes.

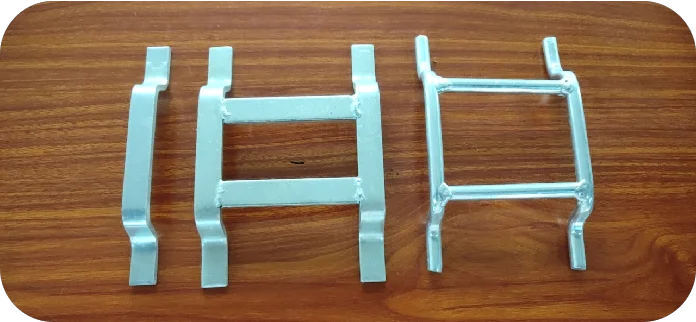

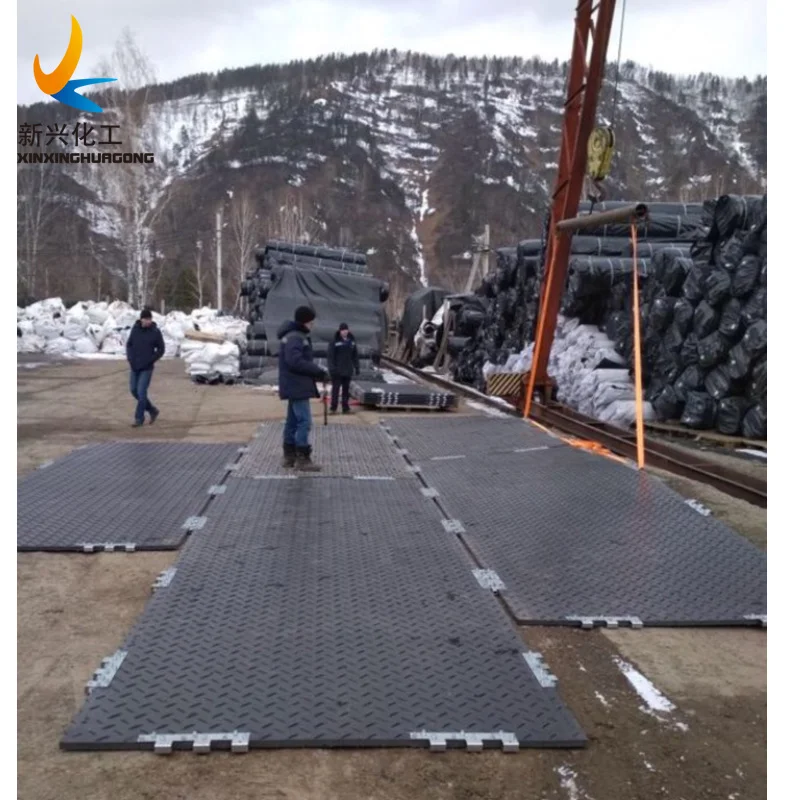

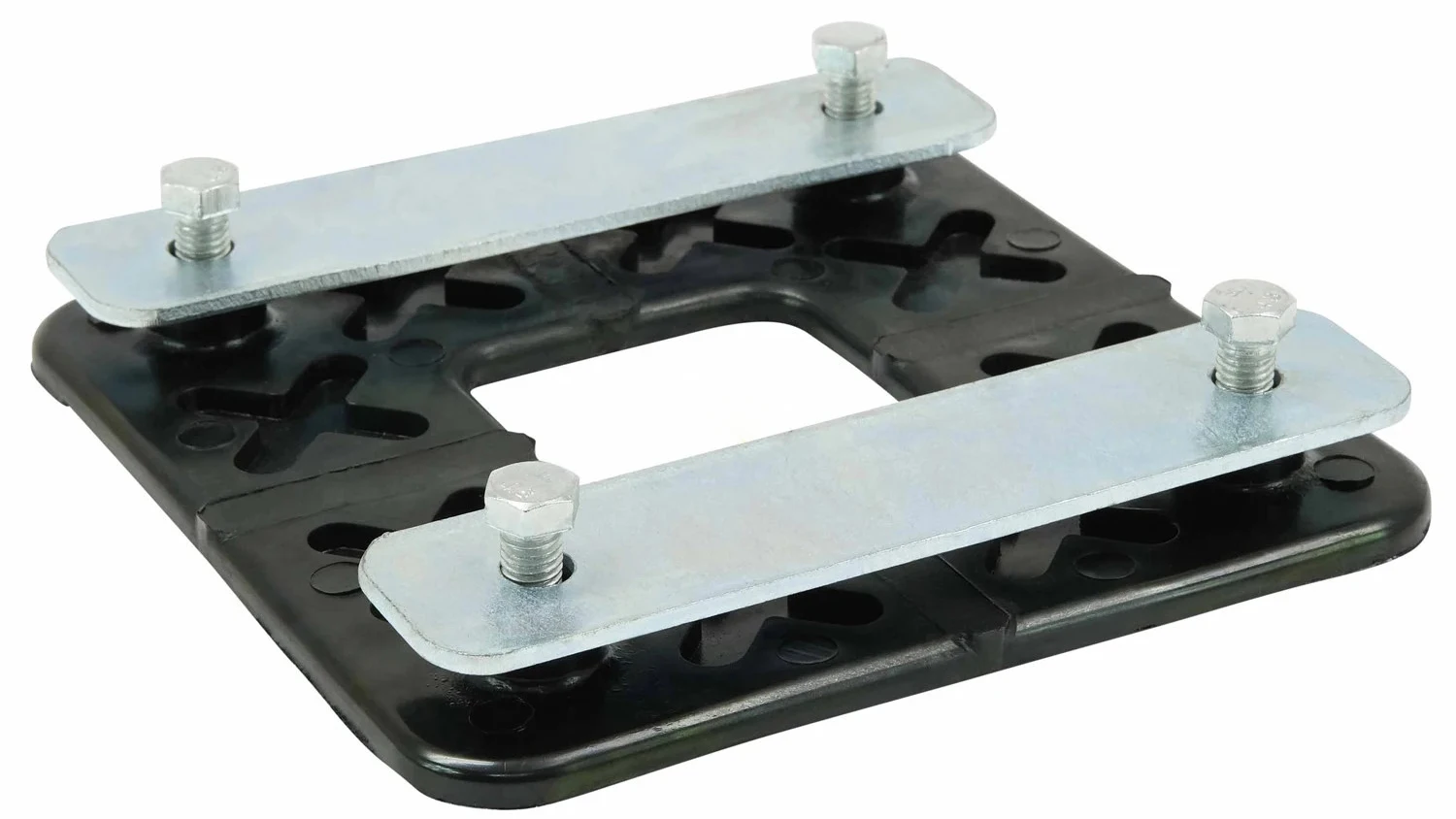

XINXING Road mat can be connected together using our Turn-A-Links connectors to create a secure track way or work pad.
We can provide both Light Duty Ground Protection Mats and Heavy Duty Ground Protection Mats.
Specifications
HDPE Composite Ground Mat:
Series No.
Size (mm)
Thickness with texture (mm)
Unit weight (kg)
Effective Surface Area (sqm)
Load Capacity (tons)
XE01
2000*1000*10
20
22.6
2.00
30
XE02
2440*1220*12.7
22.7
42
2.98
40
XE03
5900*2000*28
36
346
11.80
120
XE04
2900*1100*12.7
22.7
45
3.20
50
XE05
3000*1500*15
25
74
4.50
80
XE06
3000*2000*20
28
128
6.00
100
Remark:
- For wheel correspond
- Pattern height 5 mm for one side
- Color: black, white, green, yellow , red, pink ,blue.
- Customized color and size is available.
- We support OEM, package and Logo all can be costomiezed !
UHMWPE Composite Ground Mat:
Series No.
Size (mm)
Thickness with texture (mm)
Unit weight (kg)
Effective Surface Area (sqm)
Load Capacity (tons)
XP01
3000*2500*38
47
293
7.50
120
XP02
4500*2500*38
48
351
9.50
120
XP03
3000*2500*25
34
195
7.50
100
XP04
3000*2500*20
29
158
7.50
80
Remark:
- For wheel and tracked correspond
- Standard color is black.
APPLICATION
Application of Ground Protection Mats
*Protect your turf and provide access nearly anywhere
* Temporary flooring
* Stadium ground covering
* Contractors
* Outdoor Events/shows/festivals
* Building site access works
* Construction,civil,engineering and ground work industries
* Emergency access routes
* Golf coures and sports field maintenanc
* National Parks
* Landscaping
* Utilities and infrastructure maintenance
* Boat regarras
* Cemeteries
* Temporary roadways and carparks
* Caravan parks
* Heritage sites and eco friendly areas.
Certification

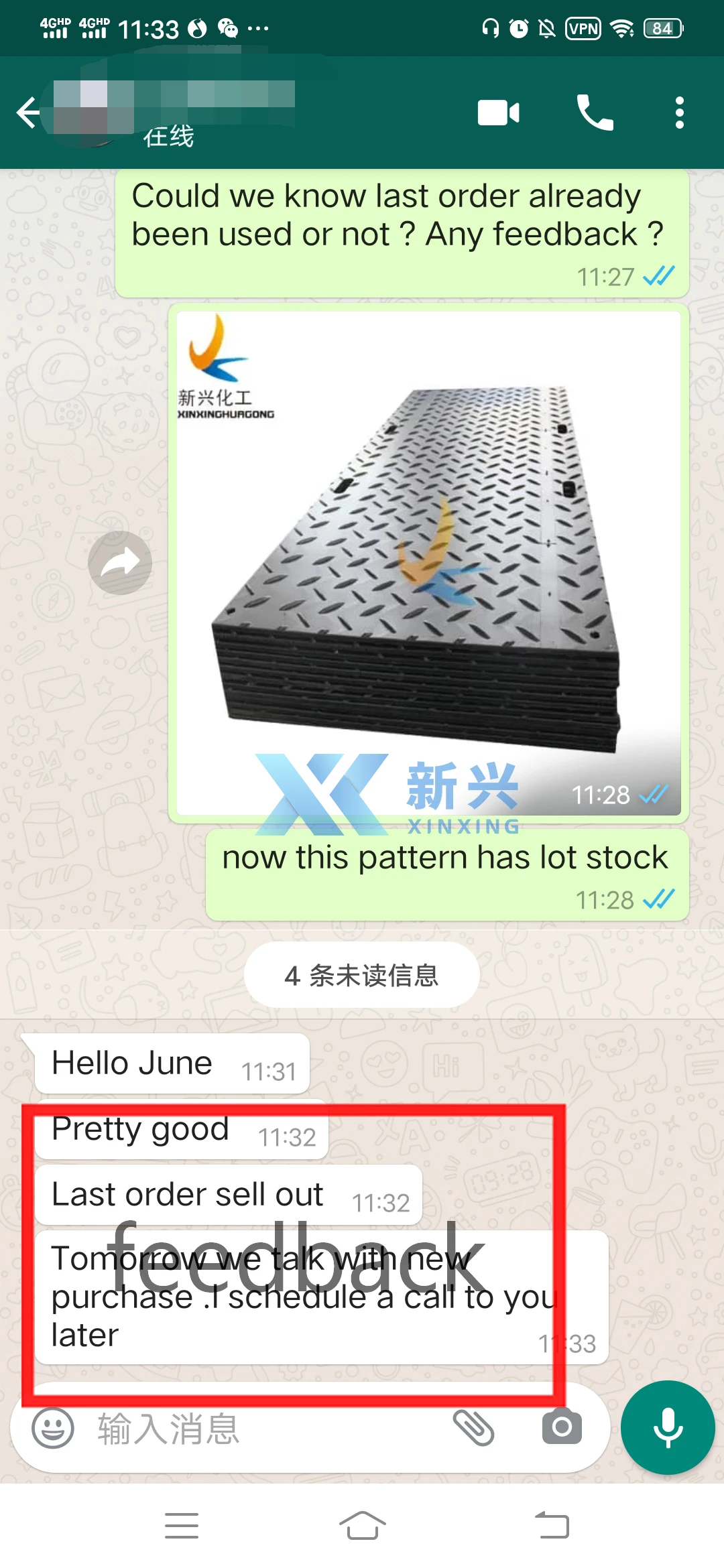

Customer Photos and Good Feedback
Company Profile
Established in 1989 , Shandong Ningjin Xinxing Chemical Co., Ltd. has become the largest manufacturer of engineering plastics in China. Xinxing's main engineered plastic products include UHMWPE sheets and rods , HDPE sheets and rods PP sheets and PVC sheets,etc . We can also supply a huge range of custom machined plastic parts such as Marine fender , Ground protection mats , Compositerig mats , as well as Ice rink series products like Ice rink dasher board , synthetic ice panel and hockey shooting pads.

Our industrial plastic products are widely used in North America, Europe, Australia , Southeast Asia, Africa , Russia and many organizations and government projects due to their outstanding properties. Xinxing engineered thermoplastics are chemical and extremely strong compared to common plastics.

We manufacture all plastic products in strict accordance with ISO9001 production standards. Meanwhile we passed UL factory Audit,SGS Quality Audit , and kinds of third party lab tests for different products , to guarantee a high-quality , high-standard , safe and healthy production environment for workers and customers .

We always share the things " Quality first , Customer first , keeping improving" to win more benefits for our partners .
Xinxing welcome for your cooperation !
