Cut-to-size PE 1000 2000 UHMWPE Plastic Wear Strips

UHMWPE wear strips are made from UHMWPE Sheet by cut-to-size processing. They embody all the characteristics of UHMWPE sheet, but with better size meeting your requirement. UHMWPE sheet has a super high wear resistance and low coefficient of friction. That caused a long life in wear-work conditions.
Availability:
Quantity:
  • UHMWPE strips
  • Xinxing
WELCOME TO VIEW!
FEEL FREE TO CONTACT ME PLEASE IF ANY QUESTIONS.


Free sample available!

PRODUCT DETAILS


About Wear Resistant UHMWPE Plastic Wear Strips
UHMWPE wear strips are made from UHMWPE Sheet by cut-to-size processing. They embody all the characteristics of UHMWPE sheet, but with better size meeting your requirement. UHMWPE sheet has a super high wear resistance and low coefficient of friction. That caused a long life in wear-work conditions.



Ultra High Molecular Weight Polyethylene (UHMWPE) Sheet

As the big thermoplastic sheet manufacturer in China, Xinxing supplies Natural, Single and Dual(double) Colors UHMWPE/HMWPE Sheet (plate, board, panel) for meeting market requirement. Xinxing has the most advanced Compression Molded and Extruding Machines to produce high quality UHMWPE/HMWPE sheet with composite material under the certain pressure and temperature.

Ultra-high-molecular-weight polyethylene (UHMWPE, UHMW) is a subset of the thermoplastic polyethylene. Also known as high-molecular weight polyethylene, (HMWPE), it has extremely long chains, with a molecular mass usually between 3.5 and 7.5 million amu. The longer chain serves to transfer load more effectively to the polymer backbone by strengthening intermolecular interactions. This results in a very tough material, with the highest impact strength of any thermoplastic presently made.

UHMWPE is odorless, tasteless, and nontoxic. It embodies all the characteristics of high-density polyethylene (HDPE) with the added traits of being resistant to concentrated acids and alkalis, as well as numerous organic solvents. It is highly resistant to corrosive chemicals; has extremely low moisture absorption and a very low coefficient of friction; is self-lubricating (see boundary lubrication); and is highly resistant to abrasion, in some forms being 15 times more resistant to abrasion than carbon steel. Its coefficient of friction is significantly lower than that of nylon and acetal and is comparable to that of polytetrafluoroethylene (PTFE, Teflon), but UHMWPE has better abrasion resistance than PTFE.

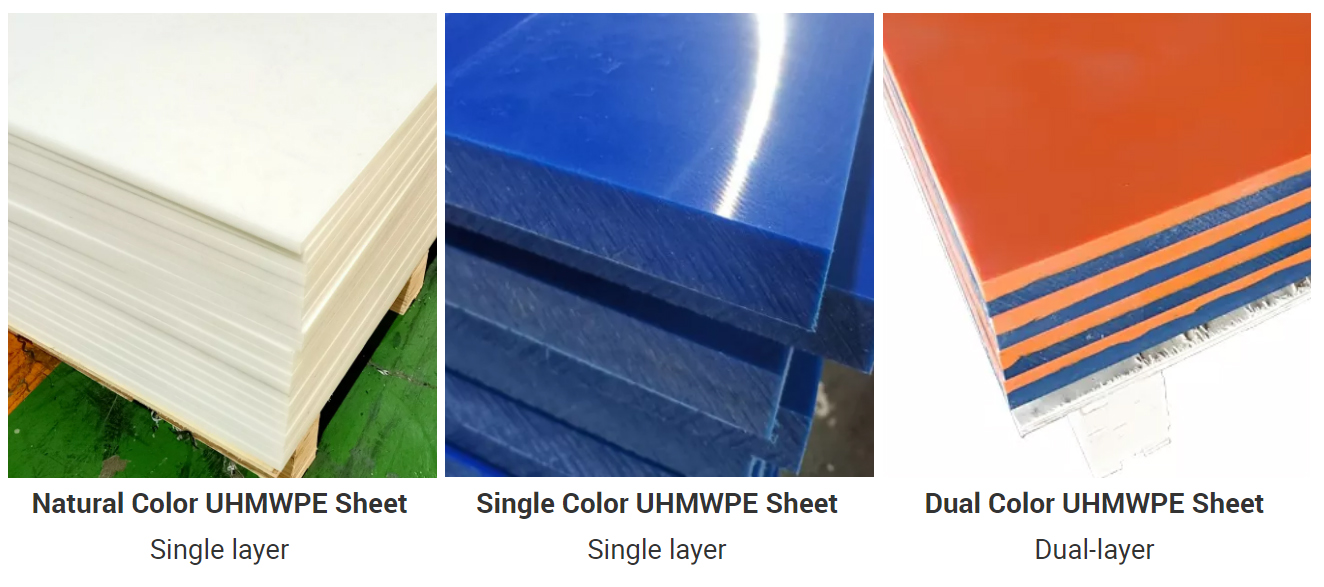

3 TYPES OF UHMW PE FOR CHOOSING

3 types of uhmwpe sheet




SPECIFICATIONS OF UHMW PE 1000  (COMPRESSION MOLDED)



SIZE (MM)
THICKNESS (MM)
STANDARD
5040*1330
2-300
STANDARD
4730*1230
2-300
STANDARD
3050*1220
2-300
STANDARD
6050*1820
2-300
STANDARD
3030*1550
2-300
STANDARD
4520*2000
2-300
STANDARD
3050*3050
2-300
STANDARD
2000*1000
2-300
STANDARD
6000*2000
2-300
Other size and thickness can be customized.





CUSTOMIZATION SERVICE WE SUPPLIED

1. Cut-to-size
2. LOGO graving
3. CNC machine processing
4. OEM/ODM service

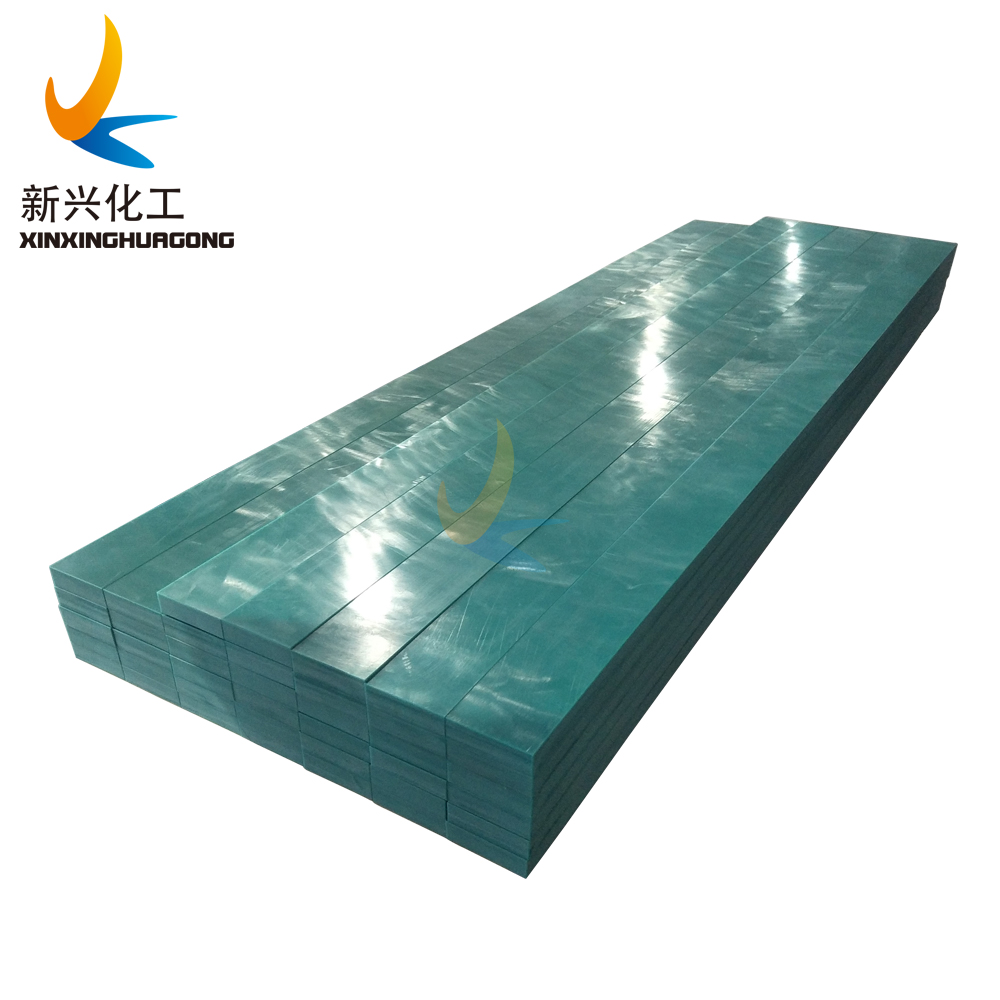

REAL PICTURES OF UHMWPE WEAR STRIPS

阿里 UHMWPE 8阿里 UHMWPE 2

UHMWPE STRIP YELLOW
