Cut-to-size PE 1000 Ultra High Molecular Weight Polyethylene UHMWPE Strips Wear Resistant

UHMWPE wear strips are made from UHMWPE Sheet by cut-to-size processing. They embody all the characteristics of UHMWPE sheet, but with better size meeting your requirement. UHMWPE sheet has a super high wear resistance and low coefficient of friction. That caused a long life in wear-work conditions.
Availability:
Quantity:
  • UHMWPE strips
  • Xinxing
WELCOME TO VIEW!
FEEL FREE TO CONTACT ME PLEASE IF ANY QUESTIONS.


Free sample available!

PRODUCT DETAILS

About Wear Resistant UHMWPE Plastic Wear Strips
UHMWPE wear strips are made from UHMWPE Sheet by cut-to-size processing. They embody all the characteristics of UHMWPE sheet, but with better size meeting your requirement. UHMWPE sheet has a super high wear resistance and low coefficient of friction. That caused a long life in wear-work conditions.



Ultra High Molecular Weight Polyethylene (UHMWPE) Sheet

As the big thermoplastic sheet manufacturer in China, Xinxing supplies Natural, Single and Dual(double) Colors UHMWPE/HMWPE Sheet (plate, board, panel) for meeting market requirement. Xinxing has the most advanced Compression Molded and Extruding Machines to produce high quality UHMWPE/HMWPE sheet with composite material under the certain pressure and temperature.

Ultra-high-molecular-weight polyethylene (UHMWPE, UHMW) is a subset of the thermoplastic polyethylene. Also known as high-molecular weight polyethylene, (HMWPE), it has extremely long chains, with a molecular mass usually between 3.5 and 7.5 million amu. The longer chain serves to transfer load more effectively to the polymer backbone by strengthening intermolecular interactions. This results in a very tough material, with the highest impact strength of any thermoplastic presently made.

UHMWPE is odorless, tasteless, and nontoxic. It embodies all the characteristics of high-density polyethylene (HDPE) with the added traits of being resistant to concentrated acids and alkalis, as well as numerous organic solvents. It is highly resistant to corrosive chemicals; has extremely low moisture absorption and a very low coefficient of friction; is self-lubricating (see boundary lubrication); and is highly resistant to abrasion, in some forms being 15 times more resistant to abrasion than carbon steel. Its coefficient of friction is significantly lower than that of nylon and acetal and is comparable to that of polytetrafluoroethylene (PTFE, Teflon), but UHMWPE has better abrasion resistance than PTFE.



HMWPE (PE500) and UHMWPE (PE1000) plates as compared to HDPE (PE300) have significantly better performance in terms of:

· abrasion resistance antiadshesiveness

· stiffness (modulus of elasticity eg for PE500 1000 MPa instead of 800 MPa for PE300)

· lubricating properties resistance to scoring, grooving water absorption

· coefficient of friction high capacity to prevent sticking of materials

· self-lubricating ability radiation resistance

· ease of processing

· high surface resistance notched impact strength (up to DIN EN ISO 179 PE300 – 12 kJ/m2, PE500 – 50 kJ/m2, PE 1000 – 200kJ/m2)

· application temperature range (in °C respectively for PE300 –50~+80, PE500 -100~+80, PE1000 -260~+80)

· damping



3 TYPES OF UHMW PE 1000 SHEET FOR CHOOSING

3 types of uhmwpe sheet




SPECIFICATIONS OF UHMW PE 1000 SHEET (COMPRESSION MOLDED)



SIZE (MM)
THICKNESS (MM)
STANDARD
5040*1330
2-300
STANDARD
4730*1230
2-300
STANDARD
3050*1220
2-300
STANDARD
6050*1820
2-300
STANDARD
3030*1550
2-300
STANDARD
4520*2000
2-300
STANDARD
3050*3050
2-300
STANDARD
2000*1000
2-300
STANDARD
6000*2000
2-300
Other size and thickness can be customized.





CUSTOMIZATION SERVICE WE SUPPLIED

1. Cut-to-size
2. LOGO graving
3. CNC machine processing
4. OEM/ODM service

custom service

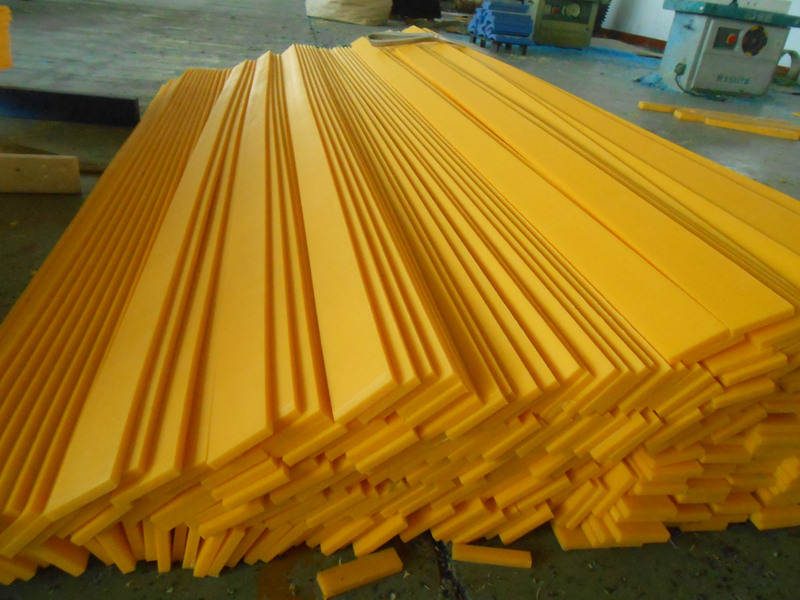

REAL PICTURES OF UHMWPE STRIPS

UHMWPE STRIP YELLOW201788104759UHMWPE STRIP




PRODUCTS CUSTOMIZED FROM UHMW PE 1000 SHEET


cnc procerssing parts



APPLICATION

partitioning tables, countertops and chopping boards PE, butcher blocks, logs in the meat industry (slaughterhouses, butchers, butcher shops, shops of meat processing, poultry, fish) and food

fenders, fender moldings, protective and sliding for ships and boats in ports, shipyards

gears, machine parts and components, self-lubricating gears, guides, slides, bearing housings, plain sleeves

doors in factories, cold stores, refrigerators , rubbing strips

sieves, colanders, presses (eg paper industry)

undercoats for core cutters

sprockets, guides

canning lines and bottlers elements of the lines of bottling, sorting, packaging and packing

lining of chutes, ramps, bleed, hold, transfer stations (sand, coal, grain and other bulk materials), silos, wagons, truck trailers

bulk materials industry

paper, printing, textile industry

chemically resistant pump components (casings, impellers), fans, filters

sporting articles for use in water

Plastic bearings


PACKING

packing
