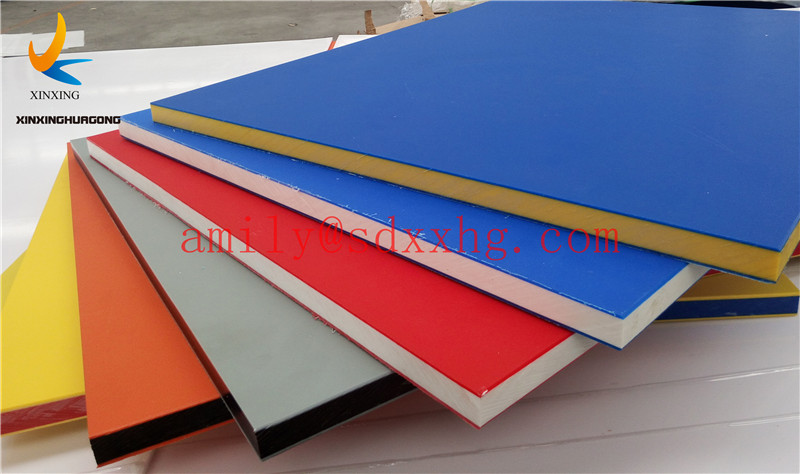

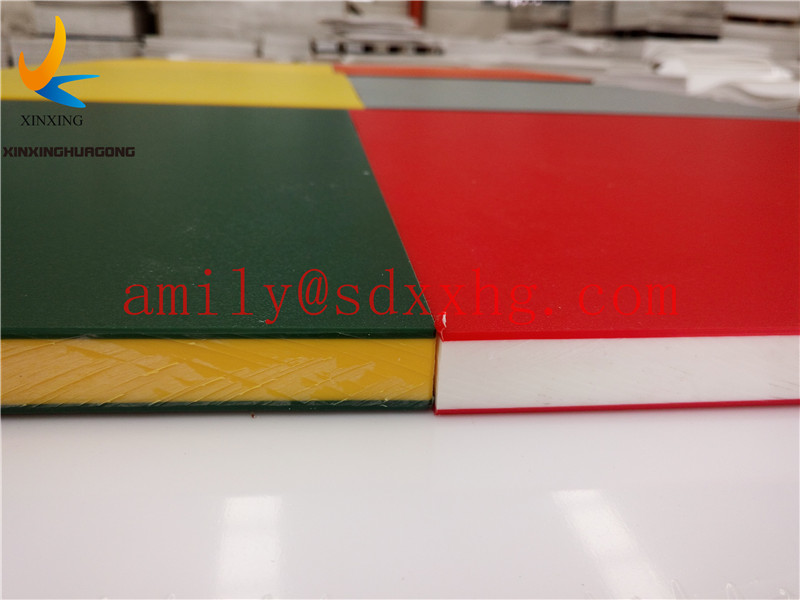

Extruded Color core HDPE Sheet

Extruded Color core HDPE Sheet
Shandong Ningjin Xinxing Chemical Co.,ltd is the leading manufacture for HDPE Sheet. Including the HDPE single color sheet, HDPE dual color sheet, textured HDPE Sheet, glossy HDPE Sheet, king color core HDPE Sheet, HDPE peel surface sheet.
Grade: PE 300,  PE 500, PE1000
Type: HDPE, PEHD, HMWPE , UHMWPE Sheet
Color:
Size:
Availability:
Quantity:
  • XX008
  • XINXING
  • 3920109090

Extruded Color core HDPE Sheet

Shandong Ningjin Xinxing Chemical Co.,ltd is the leading manufacture for HDPE Sheet. Including the HDPE single color sheet, HDPE dual color sheet, textured HDPE Sheet, glossy HDPE Sheet, king color core HDPE Sheet, HDPE peel surface sheet.

Grade: PE 300,  PE 500, PE1000
Type: HDPE, PEHD, HMWPE , UHMWPE Sheet

DPE SPECIFICATIONS

Mode of Forming

Extrusion


Classifications


HDPE Industrial Sheets

HDPE Decoration Sheets

HDPE UV Stabilized Sheets



Sizes


Thickness range: 0.4mm~30mm

Width  max.: 2000mm

Length: Any length.

Standard sizes: 1220X2440mm; 1000X2000mm

We can also provide any other sizes according to your special

needs.

Surface

Plain, Matt, Embossed, Textures,


Standard Colors

Blue, grey, black, white,yellow, green, red and any other

colors according to customers' requirements.











Applications


Food storage and freezing equipment

Cutting boards, kitchen counters, kitchen shelves

Protective surface in the food processing industries.

Acid and alkali resistant equipment, environmental protection equipment

Water tank, washing tower, waste water, waste gas discharge, water treatment

equipment

Chemical containers,medicine and food packaging

Machinery, electronics, electrical appliances, decoration and other fields

Clean room, semiconductor plant and related industrial

equiment

Gas transportation, water supply, drainage, agricultural

irrigation

Pump and valve components, medical appliance parts, seal,

cutting board, sliding profiles

Outdoor recreational facilities and Indoor house furniture, Sound Barrier, Toilet Partition, Partition Board and

Furniture, Rainbow chairs



HDPE SHEET DATA SHEET WITH UV


Mechanical Properties

Value

Unit

DIN/EN/SO

Tensile strength at yield

25

MPa

527/D638

Elongation at Break

300

%

527

Modulus of elasticity in tension

1000

MPa

527/D638

Modulus of elasticity in flexure

1000-1400

MPa

178/D790

Impact strength

15

kJ/m²

179/D256

Creep rupture strength after 1000hrs with static load

12.5

MPa

-

Time yield limit for 1% elongation after 1000hrs

3

MPa

-

Coefficient of friction against hardened and ground steel

P= 0.05 N/mm2, v= 0.6m/s

0.29

-

-

Ball indentation hardness

43

MPa

2039-1

Shore hardness D

64

-

868

Thermal Properties

Value

Unit

DIN/EN/ISO

Glass transition temperature

-95

°C

53736

Crystalline melting point

130

°C

53736

Service temperature (short term)

100

°C

-

Service temperature (long term)

80

°C

-

Coefficient of thermal expansion

13-15

10-5K

53483/D696

Specific heat

1.7-2

J/(g*K)

-

Coefficient of thermal conductivity

0.35-0.43

W/(K*m)

-

Electrical properties

Value

Unit

DIN/IEC

Surface resistivity

1014

Ohm

60093

Dielectric strength

50

kV/mm

60243-1

Other properties

Value

Unit

DIN/EN/ISO/IEC

Water absorption @ saturation @ 23°c

<0.05

%

62

Resistance to hot water, washing soda

Resistant

-

-

Resistance to weathering

Yes

-

-

Flammability (UL94)

HB

-

-

Volume Resistivity

UV Stabilized

D257

Ohm-cm fine

>6X1015

Notice to users:

The information contained in this technical date sheet can not be constructed as a promise or guarantee of specific properties of our products.Any determination of suitability of a particular material and part design for any use contemplated by the user is the sole responsibility of the user .The informaiton contained in this technical date sheet is based on present knowledge and may be subject to change without further notice.
