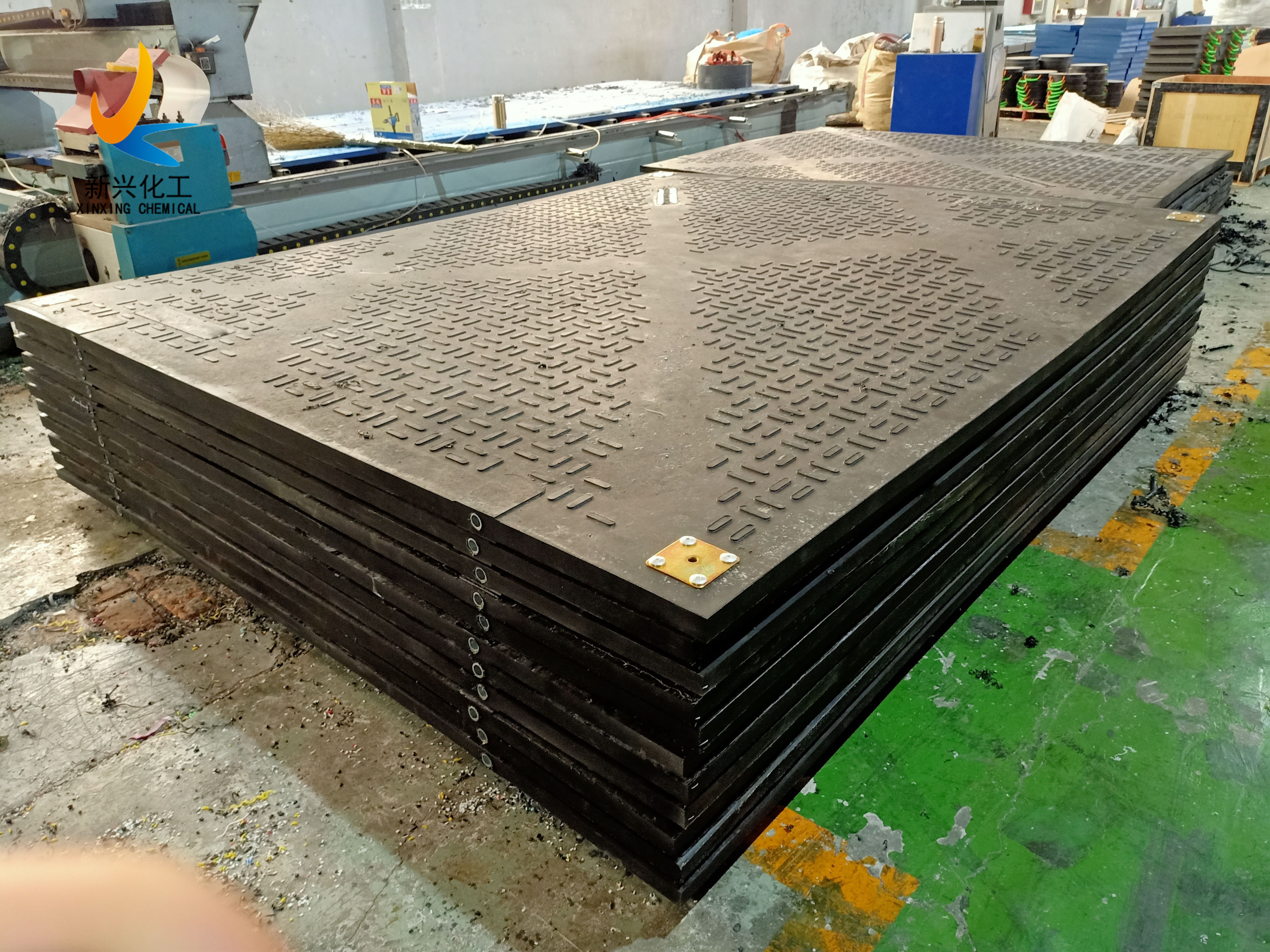

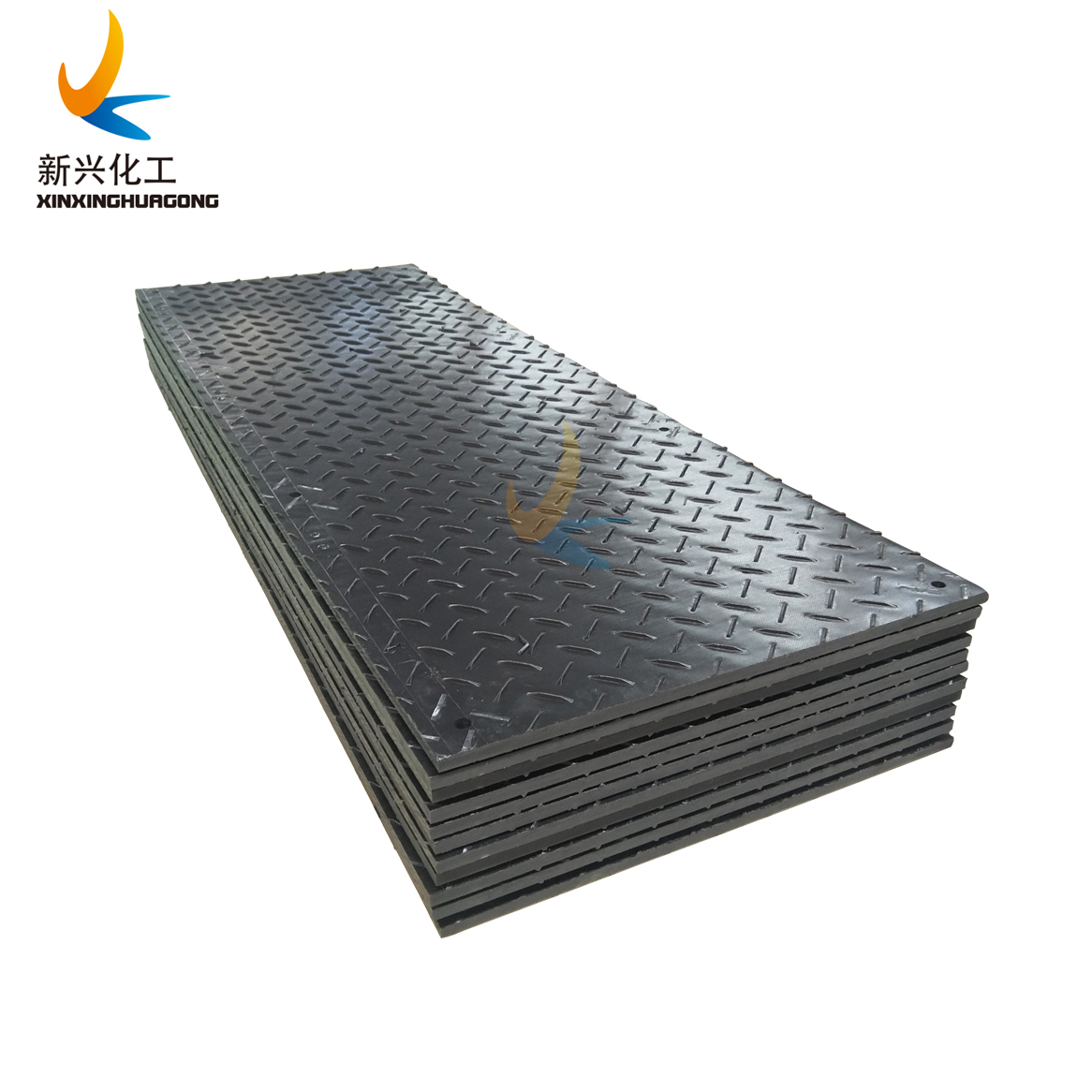

HDPE Composite Temporary Swamp Roadways Mats

Features:
• Color: standard black
• 1/7 the weight of steel mat
• Corrosion, chemical, wear and moisture resistant, more durable than wood
• Non-slip surface
• Work in sub-zero temperatures
• Easy to transport and mount
• Do not rot or splinter

Options:
• Custom colors available
• Custom your company name or logo
• Custom sizes up to 150mm thick
• 7 textures for option(4 for extruding, 3 for compressing)

Availability:

Quantity:



Inquire Add to Basket

Model:
HDPE Composite Temporary Swamp Roadways Mats
Brand:
Xinxing

Product Description

Features:

 • Color: standard black • 1/7 the weight of steel mat • Corrosion, chemical, wear and moisture resistant, more durable than wood • Non-slip surface • Work in sub-zero temperatures • Easy to transport and mount • Do not rot or splinter

Options:

• Custom colors available • Custom your company name or logo • Custom sizes up to 150mm thick
 • 7 textures for option(4 for extruding, 3 for compressing)


 Material:
 Polyethylene (PE) composite material

 Note:
 All thicknesses exclude height of texture

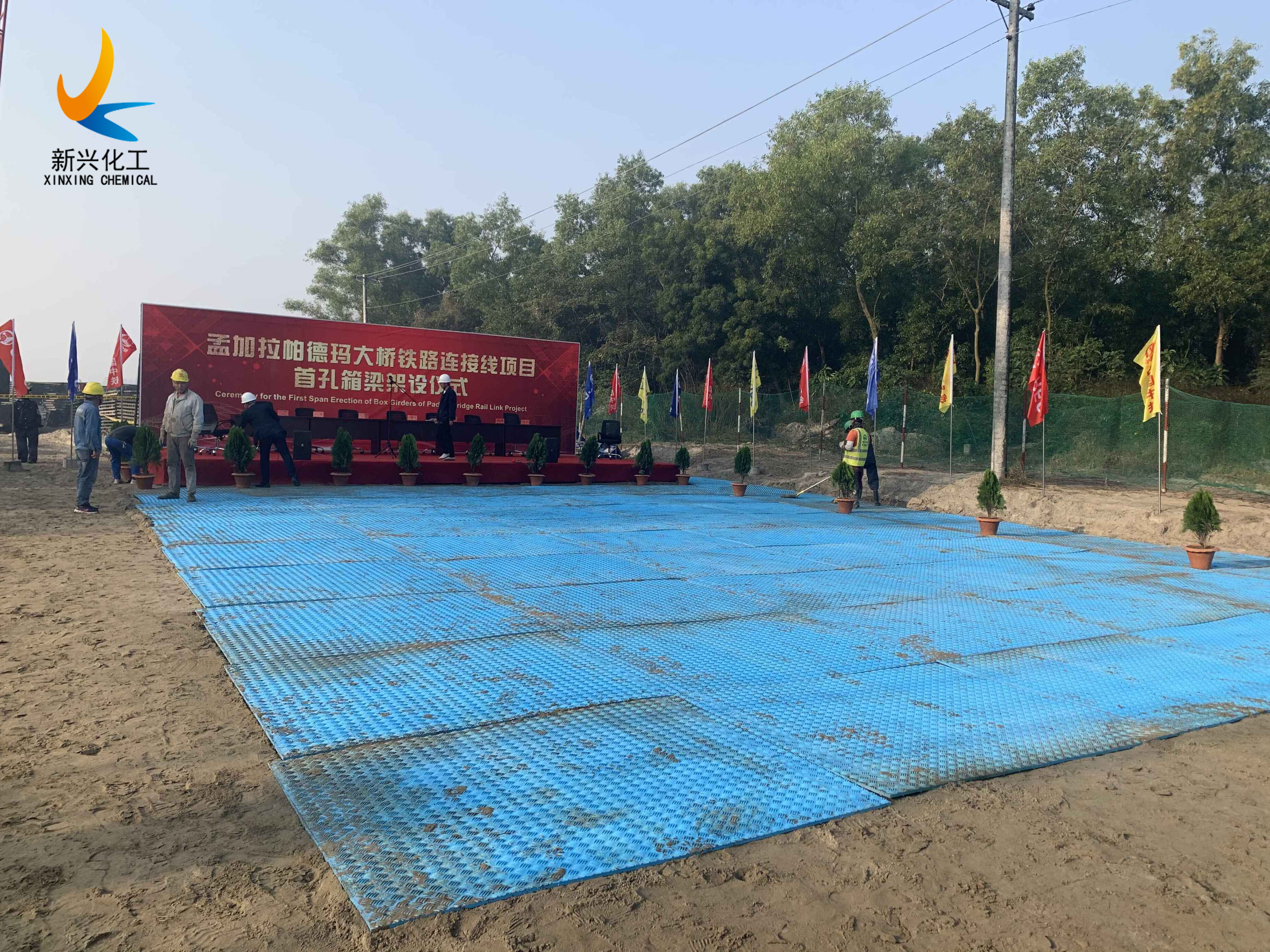

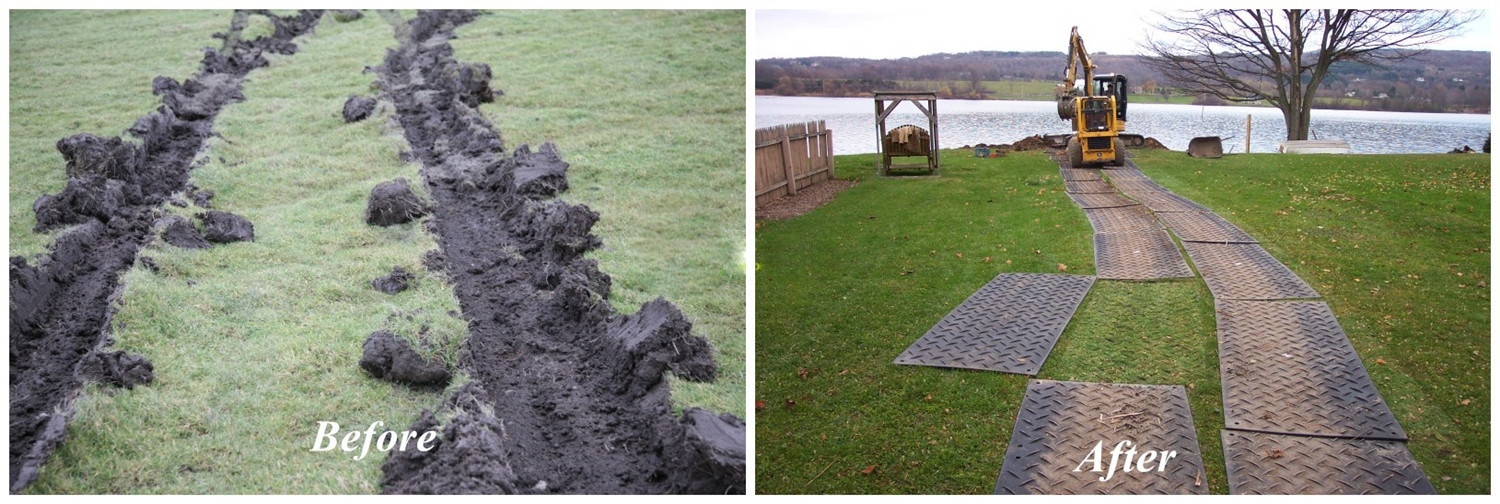

 CONTRAST BEFORE AND AFTER USING

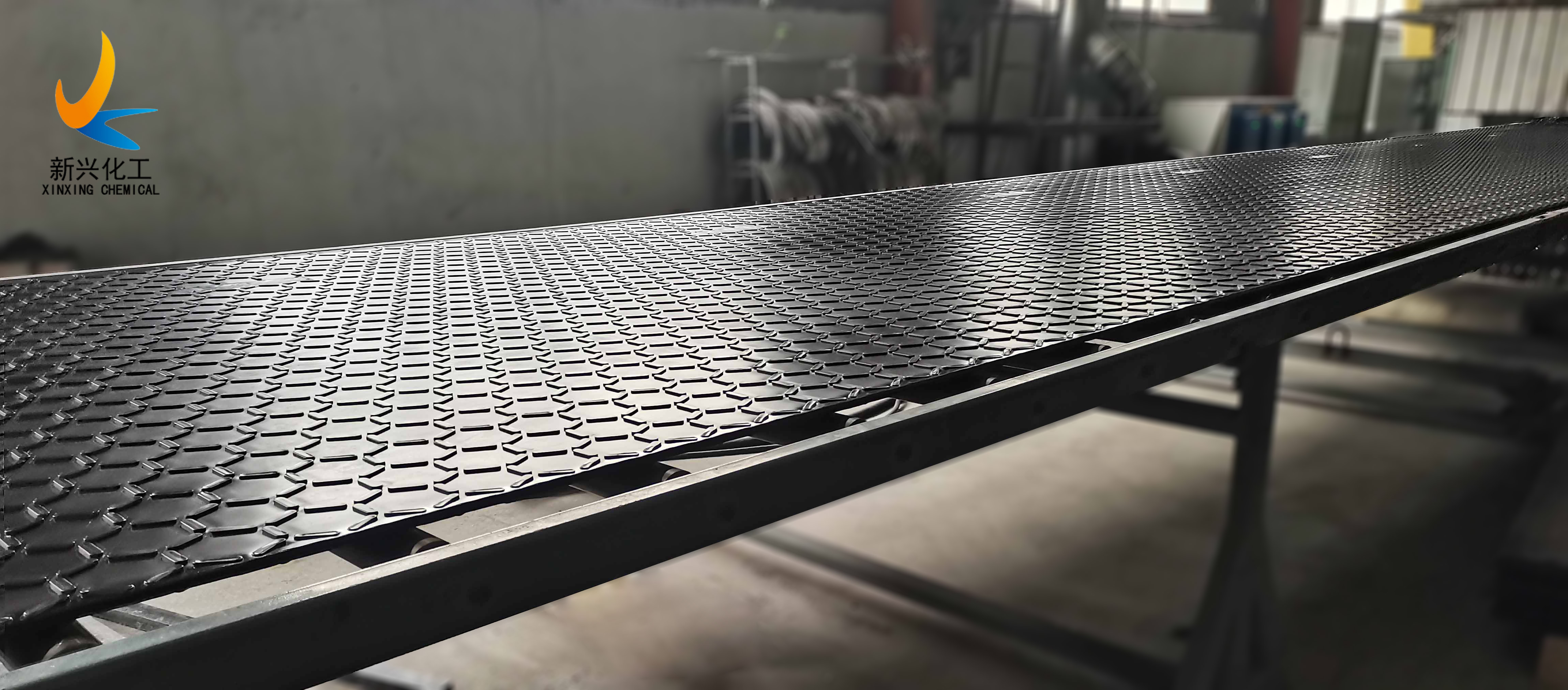

Heavy Duty Ground Protection Mat

 HEAVY DUTY

 UHMWPE COMPOSITE TEMPORARY SWAMP ROADWAYS MAT
 (COMPRESSING)

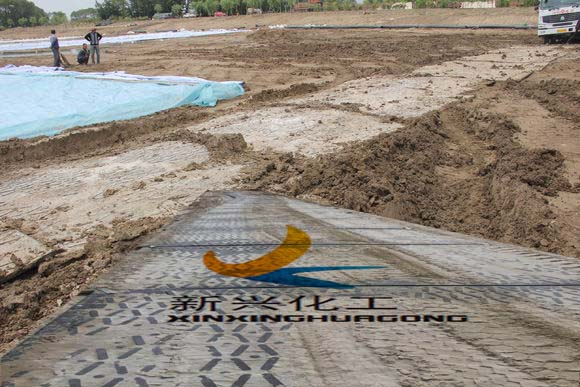

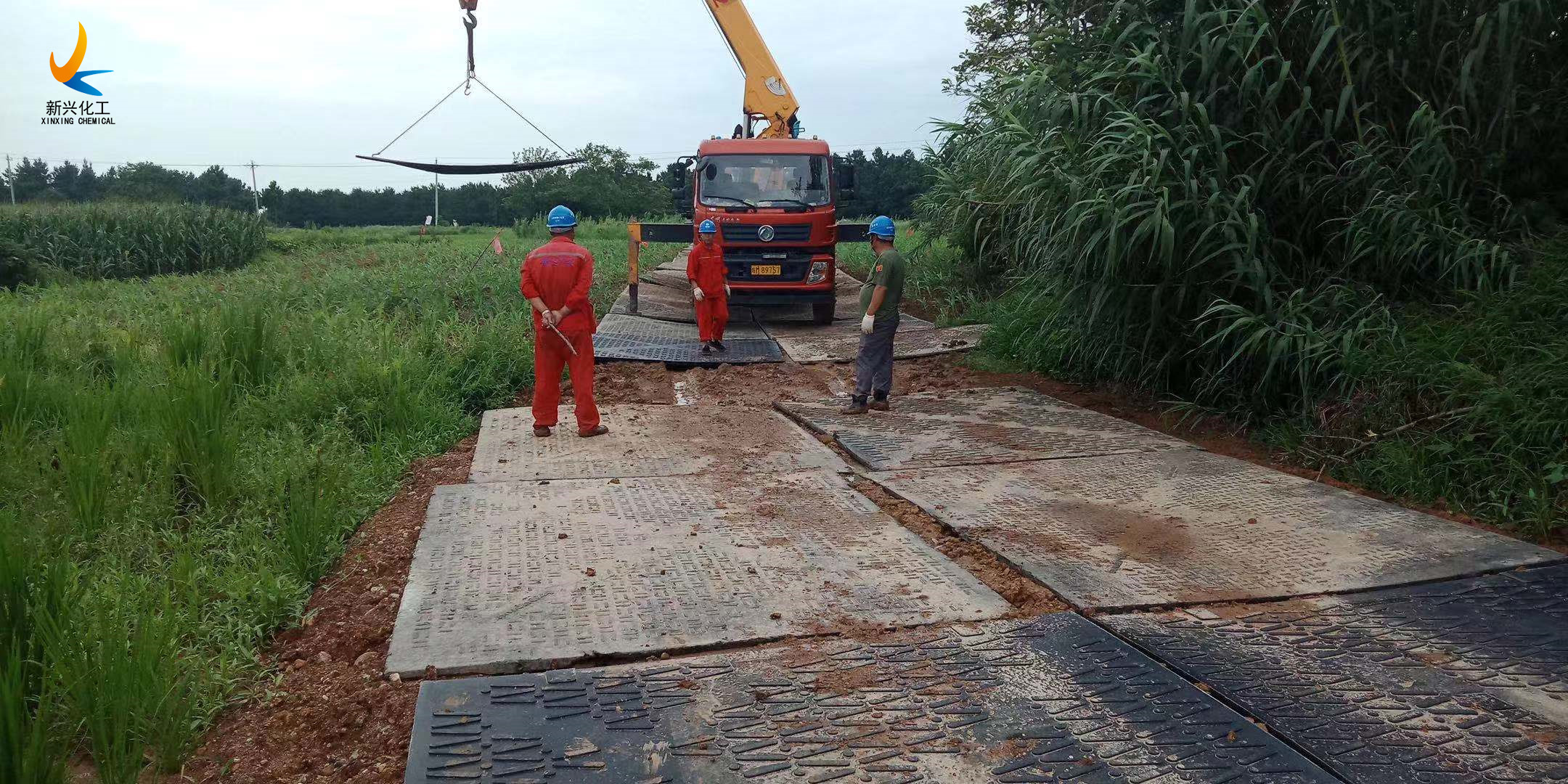

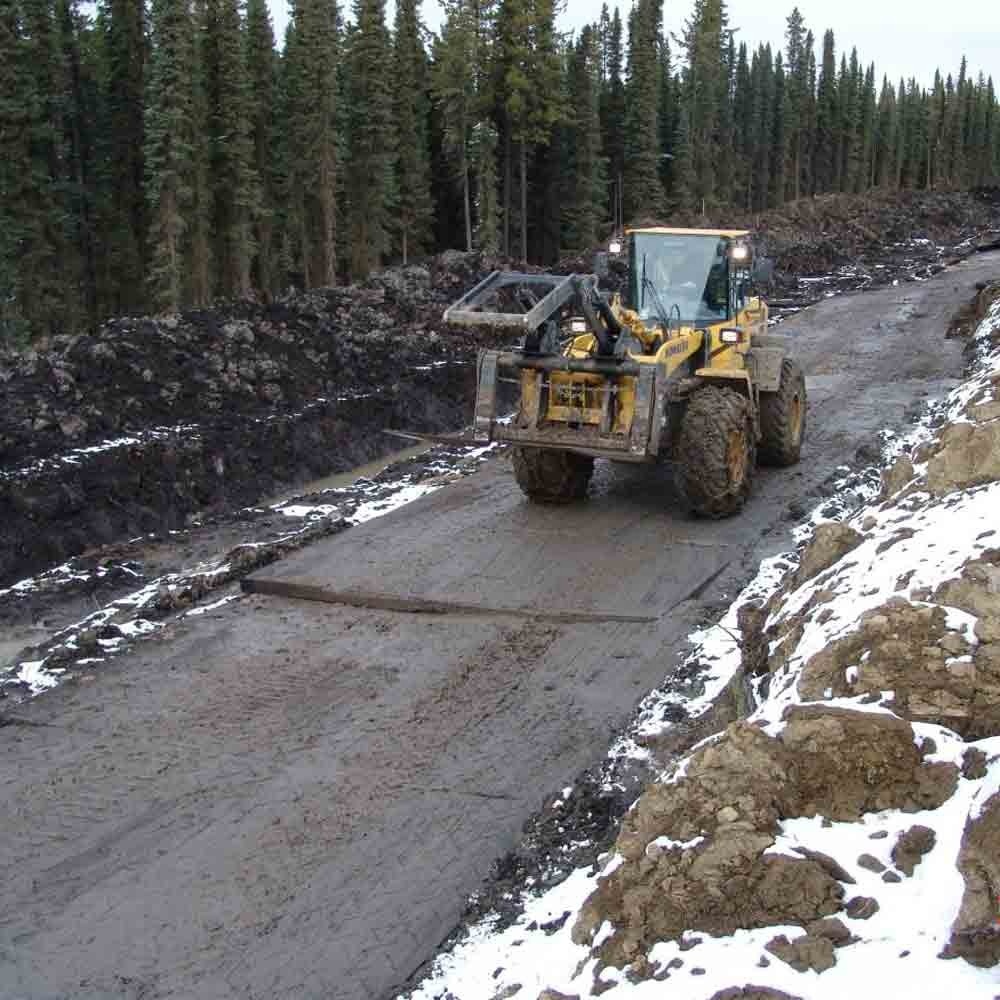

 The heavy duty UHMWPE composite temporary swamp roadways mat can support up to 380t weight and be used to build track way and compound working area for a wide range of industries, such as construction, oil drilling, power transmission, temporary road for heavy vehicle, renewable energy sites and infrastructure works.
 The heavy duty UHMWPE composite temporary swamp roadways mat has a ROUGH working surface and extremely low coefficient of friction, can be used in any weather condition, whatever the temperature high or low, rainy or dry.

Specifications:

Standard size: 3010x2510, 4560x2050mm
 Thickness: 30-150mm
 Color: Black

 Custom size, thickness available.


Thickness (mm)	Load Capacity (ton)	Remark
40	160	Thickness excludes height of texture.
50	180
60	200
70	220
80	240
90	260
100	280
110	300
120	320
130	340
140	360
150	380

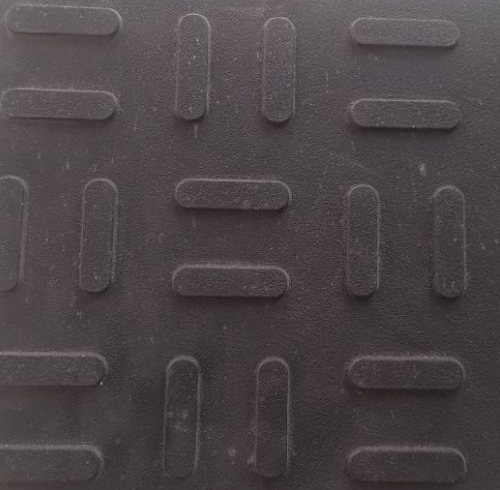

 Textures for option:

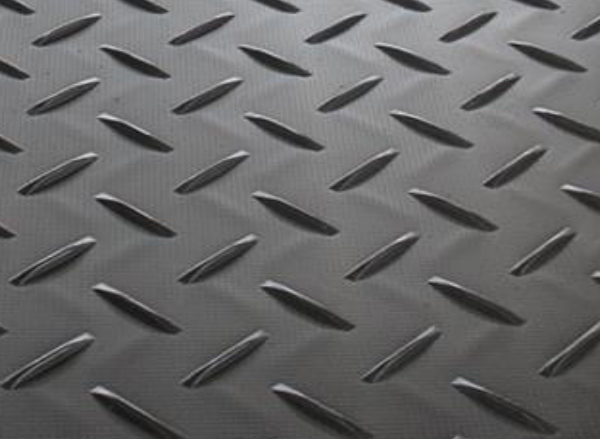

TYPE E

For Heavy Duty Vehicle

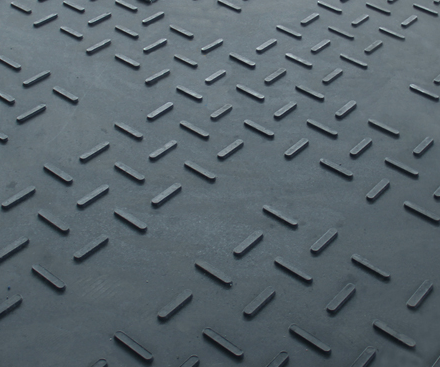

TYPE F

For Heavy Duty Vehicle

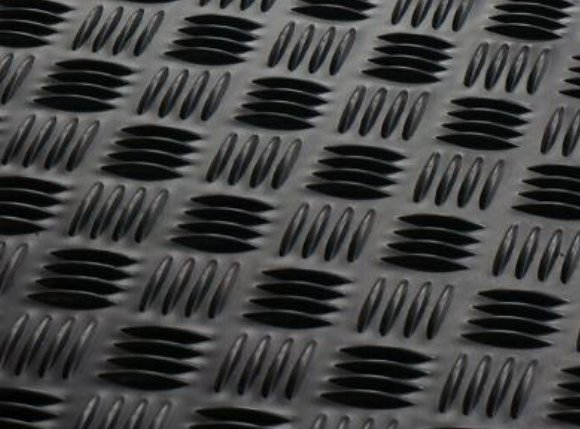

 TYPE G
 For Heavy Duty Vehicle

 You can choose (Top+Bottom):  E+E, E+F, F+F, E+G, F+G, G+G

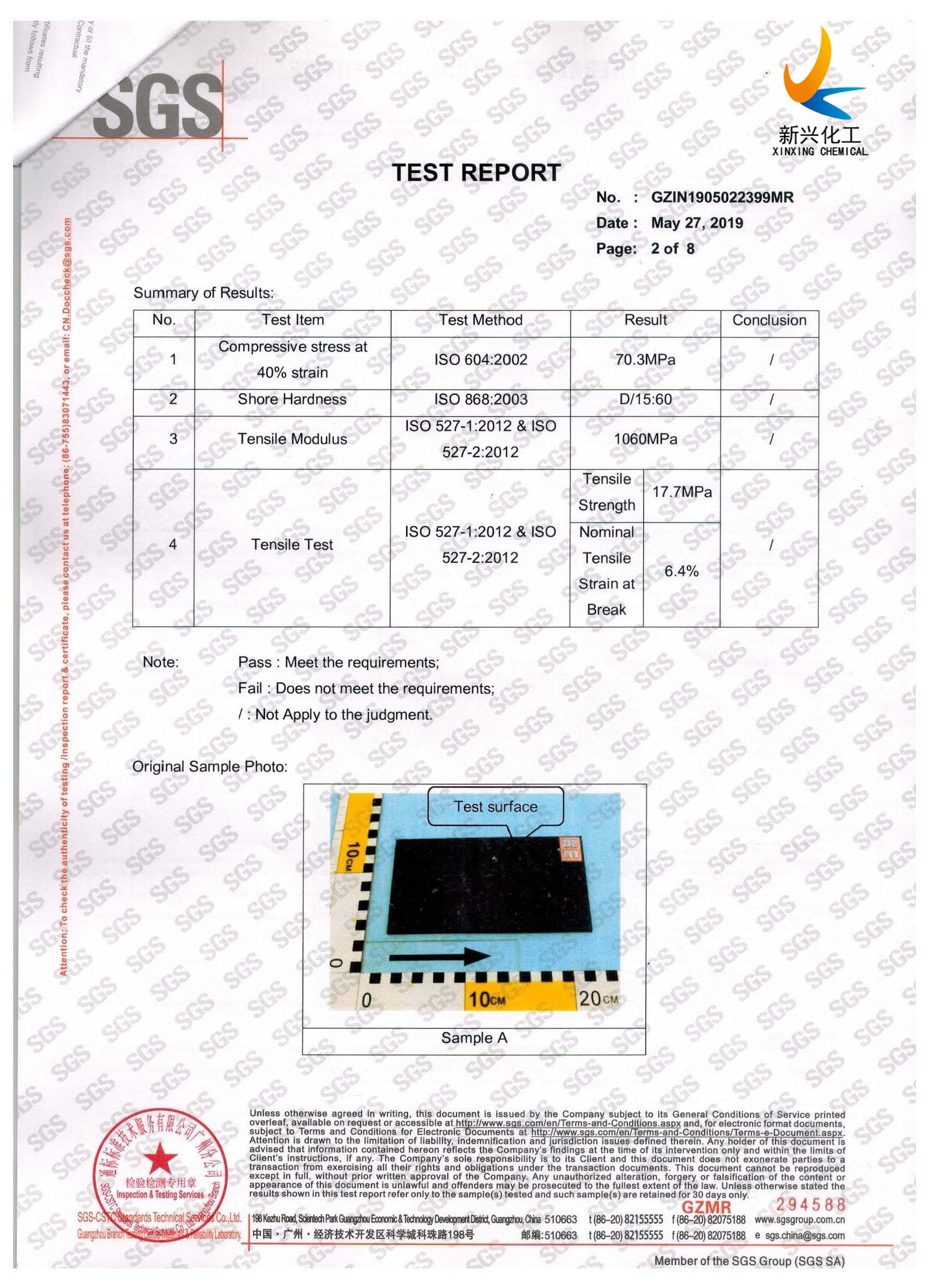

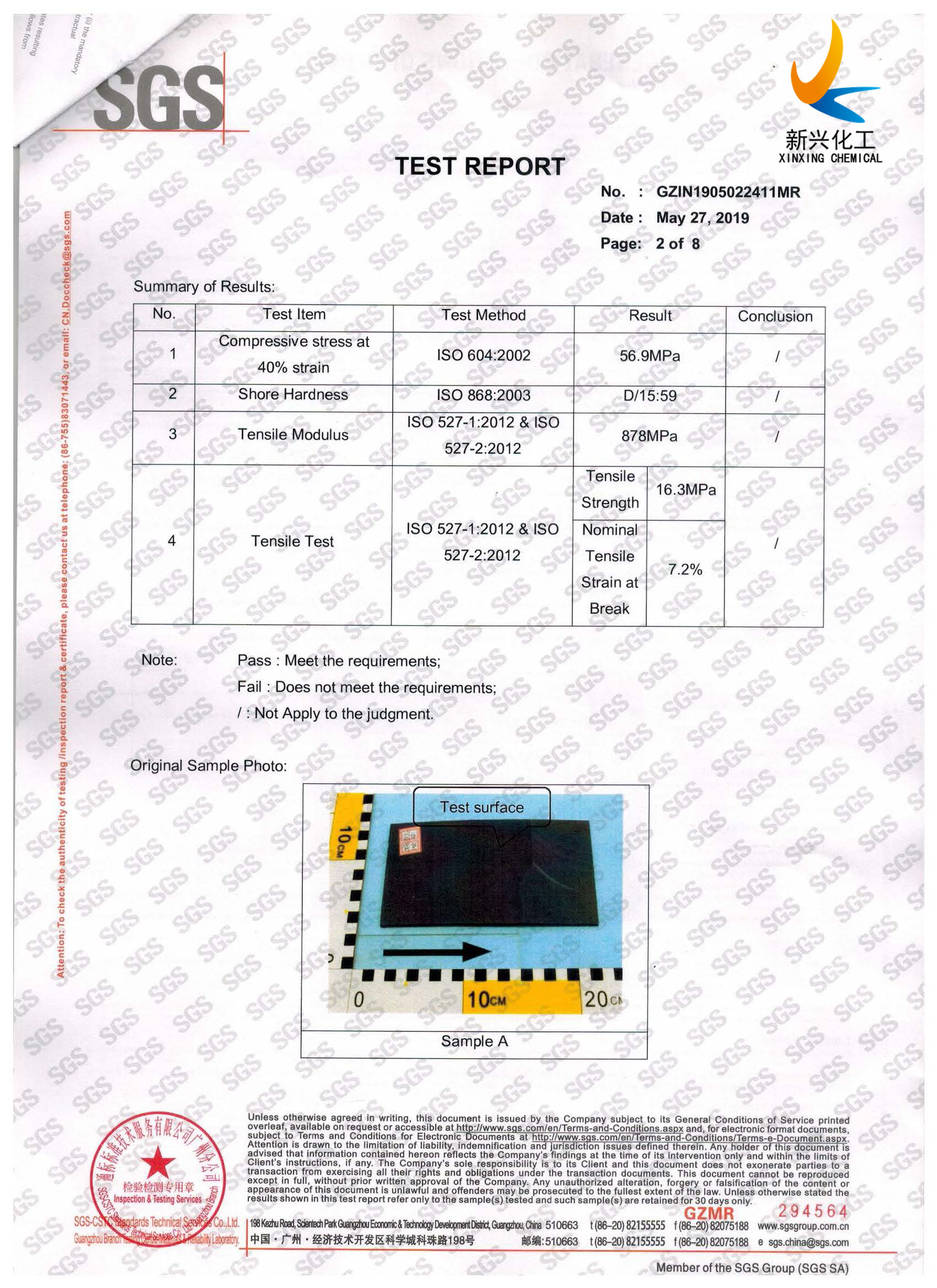

Test Report of SGS for Compressing UHMWPE Temporary Swamp Roadways Mat

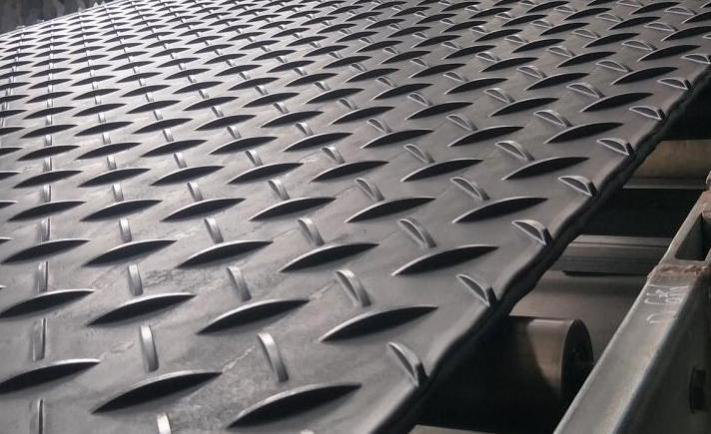

 Diamond Plate Floor Mat

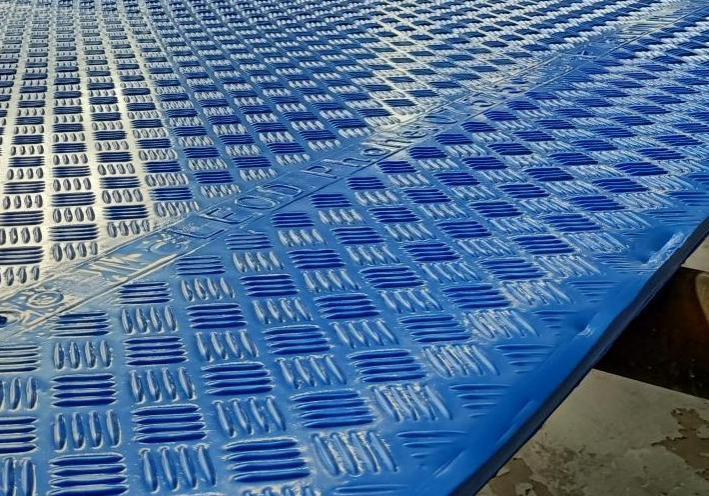

Light Duty Ground Protection Mat

 LIGHT DUTY
 HDPE COMPOSITE TEMPORARY SWAMP ROADWAYS MAT
 (EXTRUDING)

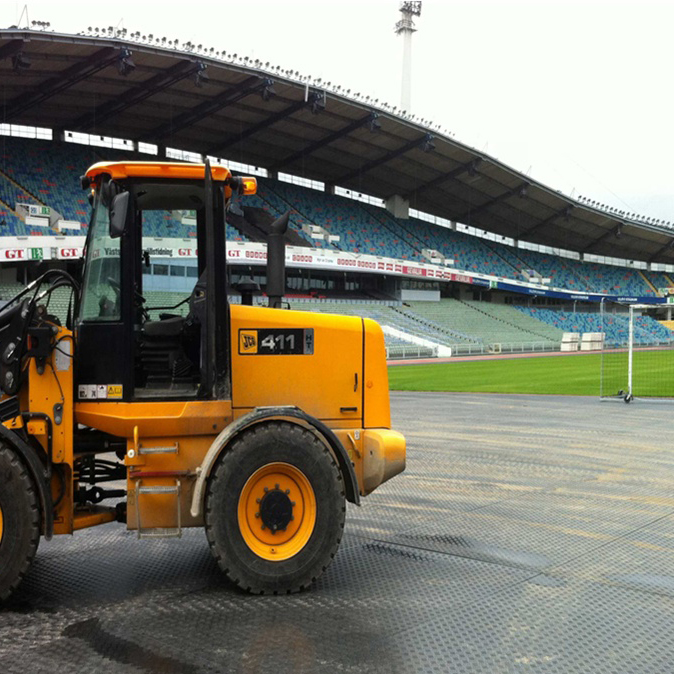

The light duty HDPE composite temporary swamp roadways mat is perfect for allowing access and gaining traction to construction site for rubber tracked and tyred vehicle from car, van, JCB, crane, HGV up to 140t.

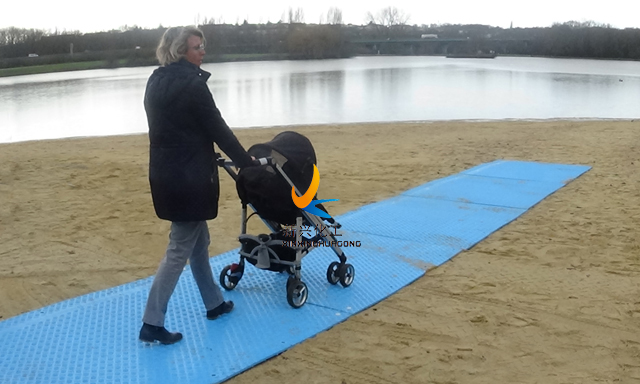

The light duty HDPE composite temporary swamp roadways mat is ideal for ground protection and pedestrian foot paths over soft or sensitive ground, like sandy, muddy, turf, marshy areas at any event.
As a superior alternative to plywood and steel, the light duty HDPE composite temporary swamp roadways mat does not warp, rot, crack, delaminate or absorb harmful chemicals.
The light duty HDPE composite temporary swamp roadways mat has excellent UV, corrosion, chemical, wear resistance and extremely low coefficient of friction, no absorbs moisture. It is more durable than wood material.

Specifications:

Standard size (in mm):  2000x1000, 3000x1500, 2440x1220, 2440x610, 2900x1100, 3000x2000, 4000x2000
 Thickness: 10-30mm
 Color: Natural, black, white, red, yellow, green, gray, blue and so on
 Custom size, thickness, color available.
