HDPE Hollow Core Heavy Duty Ground Protection Mats

HDPE hollow core ground protection mat is a strong & long lasting composite construction mat.
They can be used on Oil Rig & Pipeline Sites, Turf Protection Mats & Event Flooring, drill sites and work platforms.
Availability:
Quantity:
  • Hollow ground protection mat

  • Xinxing

Product Description

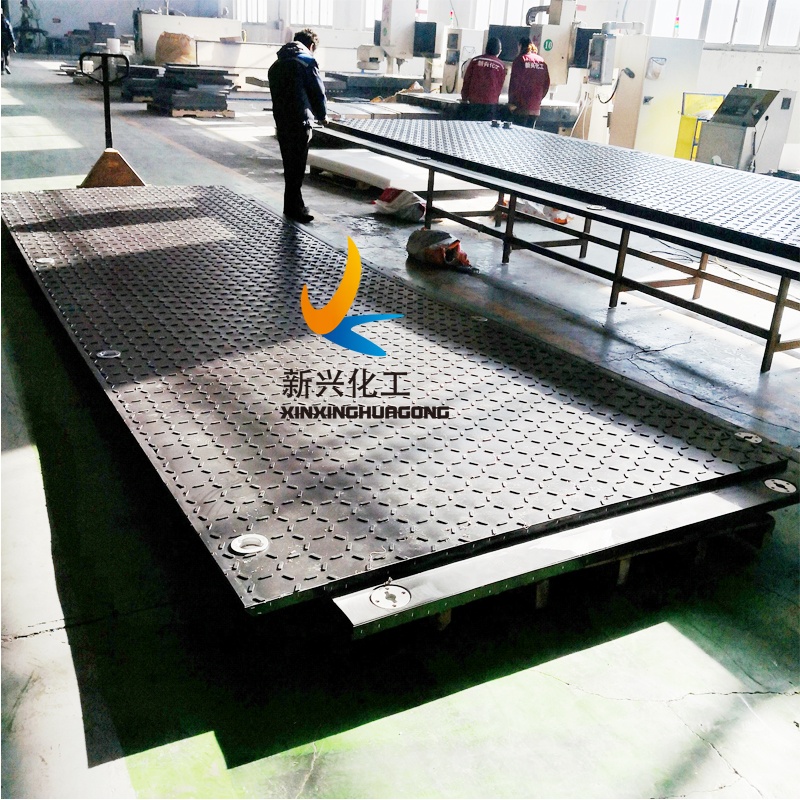

rig mat with new logo 2

HDPE Hollow Core Heavy Duty Ground Protection Mats

HDPE hollow core ground protection mat is a strong & long lasting composite construction mat.

They can be used on Oil Rig & Pipeline Sites, Turf Protection Mats & Event Flooring, drill sites and work platforms.


Material
HDPE +UV stabilizer + Static resistant agent
Working Temperature
-40 ℃ to +50 ℃
Production Technology
Single-piece construction;
Specialized formula with UV resistance & Static dissipation
Technical Specifications
Over all dimension: 4000 X 2130 X 88 MM

Usable surface dimension: 3820 X 1900 X 88 MM, 7.26 m2 usable area

Unit weight: 367.20 kgs each

Load capacity: 600 psi
Logistics
42 mats / 40GP container
Safety
Continuous work surface eliminates gap and differential movement for preventing from
slipping, tripping and falling.
Advantages
• Handle Heavy Loads with the Cast Aluminum Inter Lock System

• An innovative connection technology prevents mats from shifting or drifting under heavy weight or torque. By connecting mats in multiple locations, this unique connection system enables mats to handle tremendous static and dynamic loads.

• Easy to use, cast aluminum locking system provide secure connection of mats in a variety of configurations with the use of a single T-bar tool.

• Safer Working Environment with Optimized Traction Pattern

• Feature an optimized anti-slip traction pattern, molded into the top surface, each sides 4mm higher that makes personnel, vehicles, and tracked equipment work safely in any environment or terrain.

• Can be used to cross grass, gravel, soil, concrete, asphalt, mud and sandy soil conditions without ground preparation. While it is highly recommended that terrain be filled and smoothed as much as possible and that a geotextile barrier be used in wet and/or hazardous situations.

•Protect the Environment and Prevent Cross Contamination 100% recyclable and non-toxic

• No absorb or retain harmful chemicals or invasive species, and thus will not transfer contaminants to other jobsites or storage facilities.
road mat (4)

Lock of HDPE Oil Rig Mat

阿里 rig mat

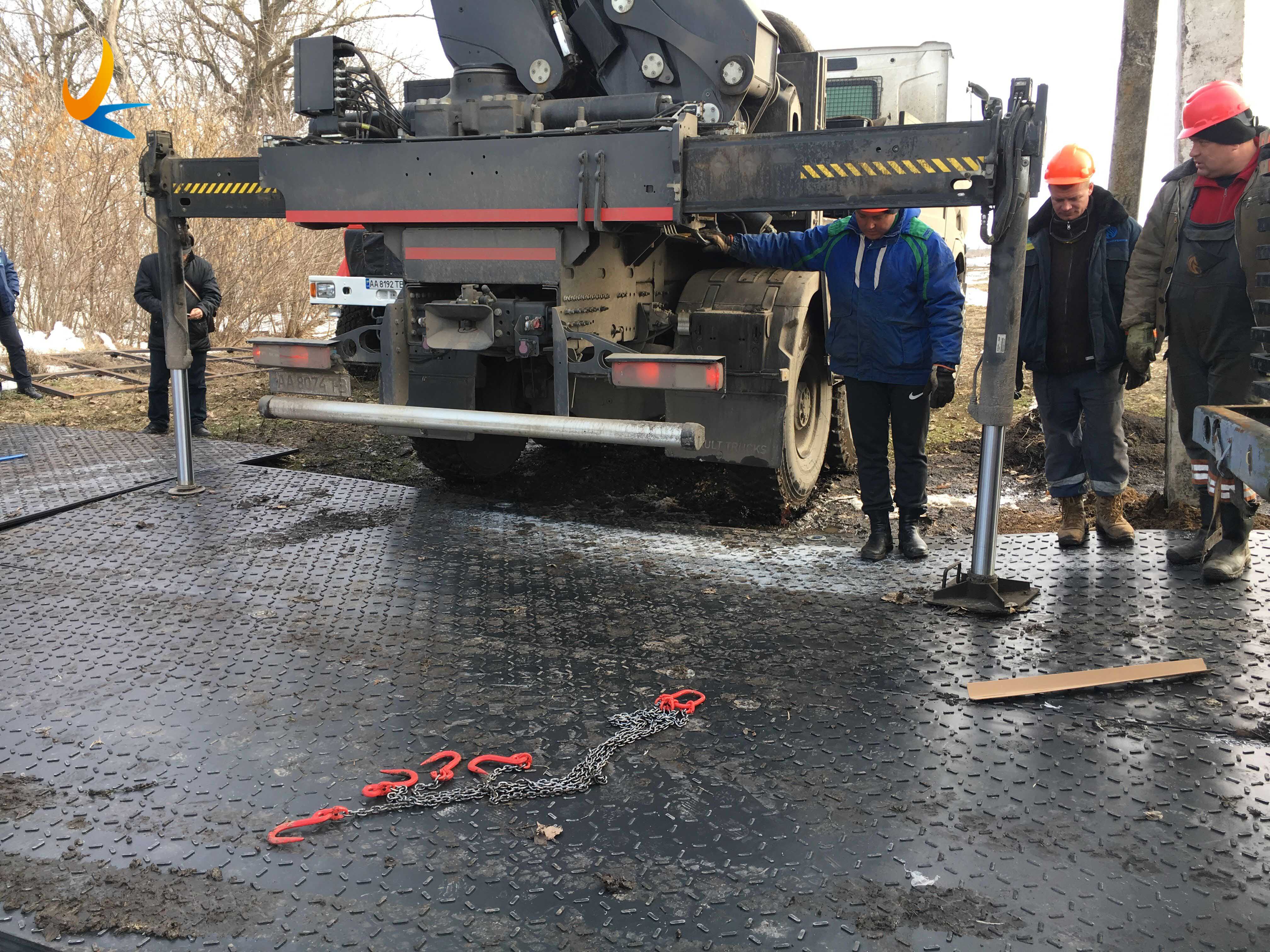

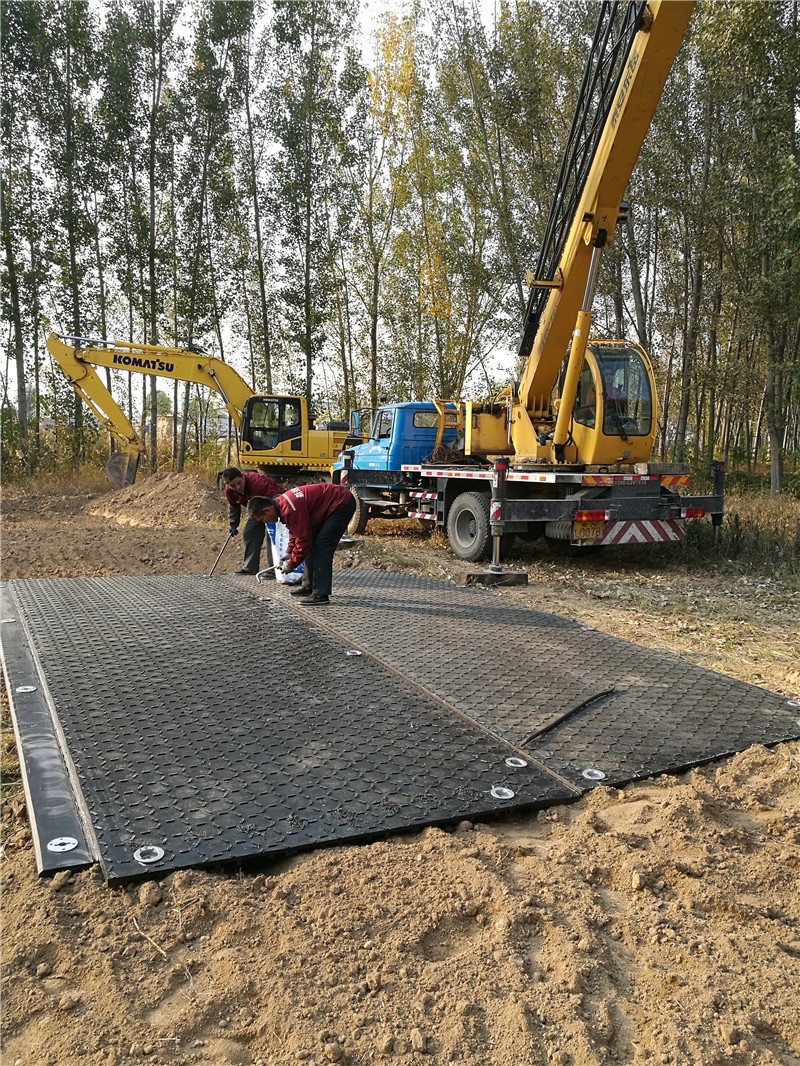

Assemble Performance of HDPE Oil Rig Mats

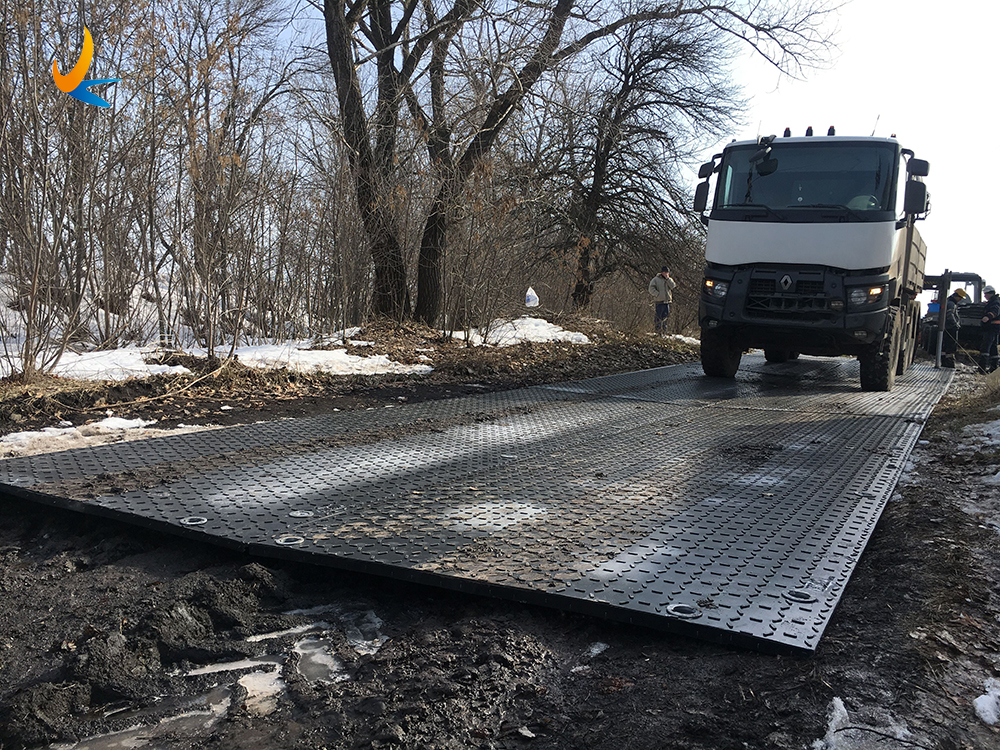

Applications
APPLICATIONS OF HDPE Temporary Access Mat

1.  In the Military
Our HDPE ground protection mat can meet the demand of many rapid access and logistical needs in Military Field. It can supply a temporary and safety access roads for Crane / Tanks, tent flooring, walkways,
equipment storage platforms, and helicopter landing and maintenance pads.

2.Construction oil and drilling industry and Heavy Haul
In construction and heavy haul condition, it requires careful engineering and safety planning. To do a successful move, the strictest safety standards must be followed and tight time constraints mean execution must be flawless and free from delays. So our HDPE temporary access mats play a important role in this environment, our joining system make them can be connected safety and easily to establish a large area. This assists in preventing load destabilization for a safe, continuous temporary work surface that helps spread the ground pressures from heavy haul loads.

2.  - Pipeline Industry
In order to work in oilfields, companies would have to work in not only previously untouched lands, but highly inaccessible fields. Often these were unstable grounds, covered in mud which is an unstable environment for the trucks, pipeline construction equipment, and other equipment. A safe, environmentally friendly solution was needed.

HDPE temporary access mats can work well for the pipeline industry, which have a longer life even with the heaviest loads, and can be shipped at a lower cost.

3.  Wind Industry
HDPE temporary access mats have assisted the wind energy on its many wind farm construction projects, which provide the stable platform for the large cranes to safely lift and maneuver the large turbine blades and generators into place.

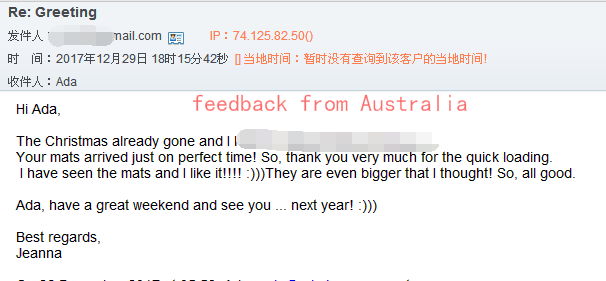

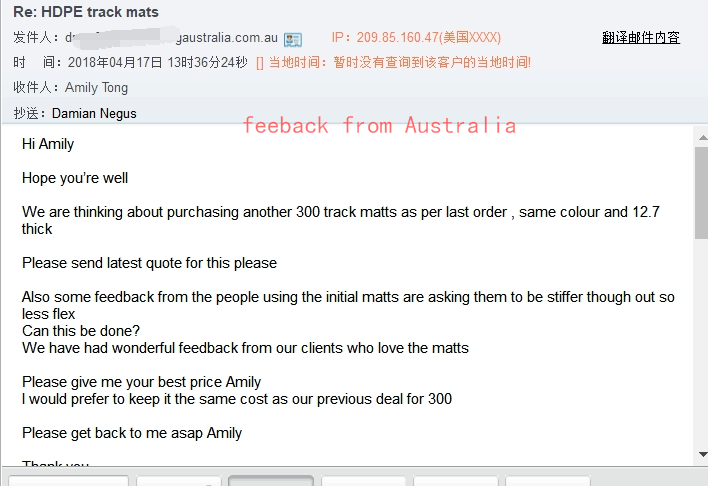

Feedback from Customers


Please contact me if you are interested: vincent@sdxxhg.com
