Heavy Duty UHMWPE Ground Protection Mat

The heavy duty UHMWPE composite ground protection mat can support up to 380t weight and be used to build track way and compound working area for a wide range of industries, such as construction, oil drilling, power transmission, temporary road for heavy vehicle, renewable energy sites and infrastructure works.

The heavy duty UHMWPE composite ground protection mat has a ROUGH working surface and extremely low coefficient of friction, can be used in any weather condition, whatever the temperature high or low, rainy or dry.
Availability:
Quantity:
  • ground protection mat

  • Xinxing

road mat (51)

Features:

• Color: standard black

 • 1/7 the weight of steel mat

 • Corrosion, chemical, wear and moisture resistant, more durable than wood

• Non-slip surface

 • Work in sub-zero temperatures

 • Easy to transport and mount

 • Do not rot or splinter


Options:

• Custom colors available

• Custom your company name or logo

• Custom sizes up to 150mm thick

• 7 textures for option (4 for extruding, 3 for compressing)


Material:

Polyethylene (PE) composite material


Note:

All thicknesses exclude height of texture

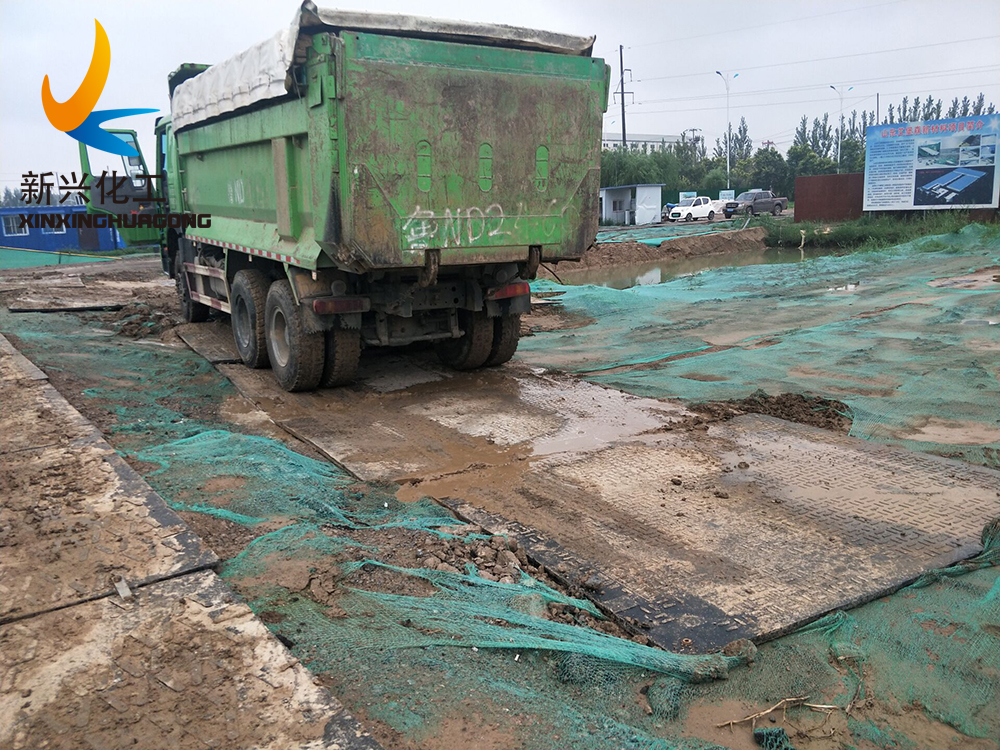

CONTRAST BEFORE AND AFTER USING

Light Duty Ground Protection Mat


LIGHT DUTY

HDPE COMPOSITE GROUND PROTECTION MAT

(EXTRUDING)


The light duty HDPE composite ground protection mat is perfect for allowing access and gaining traction to construction site for rubber tracked and tyred vehicle from car, van, JCB, crane, HGV up to 140t.

The light duty HDPE composite ground protection mat is ideal for ground protection and pedestrian foot paths over soft or sensitive ground, like sandy, muddy, turf, marshy areas at any event.

As a superior alternative to plywood and steel, the light duty HDPE composite ground protection mat does not warp, rot, crack, delaminate or absorb harmful chemicals.

The light duty HDPE composite ground protection mat has excellent UV, corrosion, chemical, wear resistance and extremely low coefficient of friction, no absorbs moisture. It is more durable than wood material.


Specifications:

Standard size (in mm): 2000x1000, 3000x1500, 2440x1220, 2440x610, 2900x1100, 3000x2000, 4000x2000

Thickness: 10-30mm

Color: Natural, black, white, red, yellow, green, gray, blue and so on

(Custom size, thickness, color available.)


Thickness
(mm)
Load Capacity
(ton)
Remark
10
50
Thickness excludes height of texture.
12.7
60
15
80
18
90
20
100
25
120
30
140

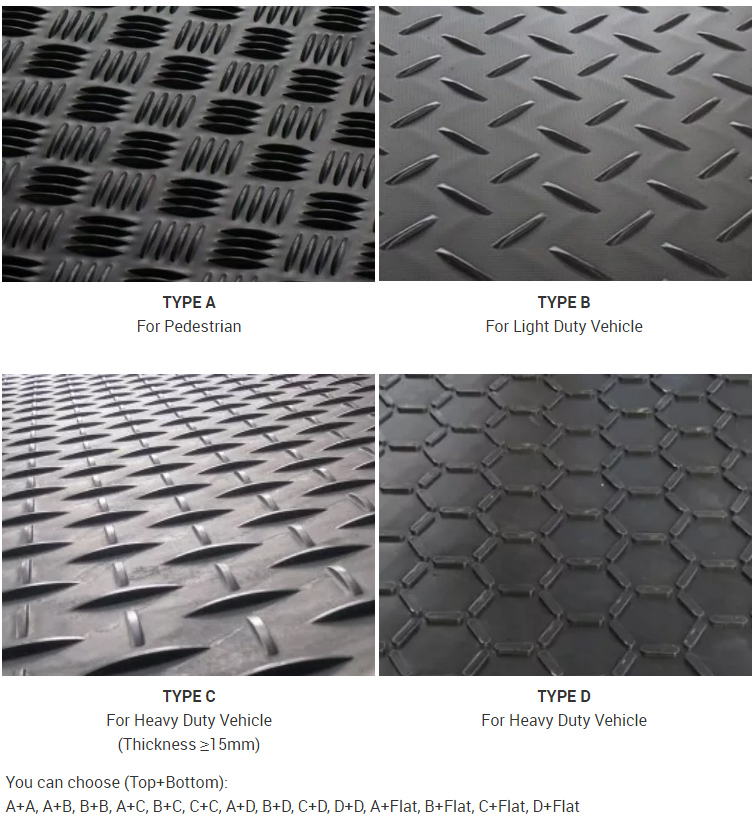

Textures for option:

texture of extruding


Test Report of SGS for Extruding HDPE Ground Protection Mat



Heavy Duty Ground Protection Mat
HEAVY DUTY
UHMWPE COMPOSITE GROUND PROTECTION MAT

(COMPRESSING)


The heavy duty UHMWPE composite ground protection mat can support up to 380t weight and be used to build track way and compound working area for a wide range of industries, such as construction, oil drilling, power transmission, temporary road for heavy vehicle, renewable energy sites and infrastructure works.

The heavy duty UHMWPE composite ground protection mat has a ROUGH working surface and extremely low coefficient of friction, can be used in any weather condition, whatever the temperature high or low, rainy or dry.


Specifications:
Standard size:  3010x2510, 4560x2050mm
Thickness: 30-150mm
Color: Black
Custom size, thickness available.


Thickness
(mm)
Load Capacity
(ton)
Remark
40
160
Thickness excludes height of texture.
50
180
60
200
70
220
80
240
90
260
100
280
110
300
120
320
130
340
140
360
150
380

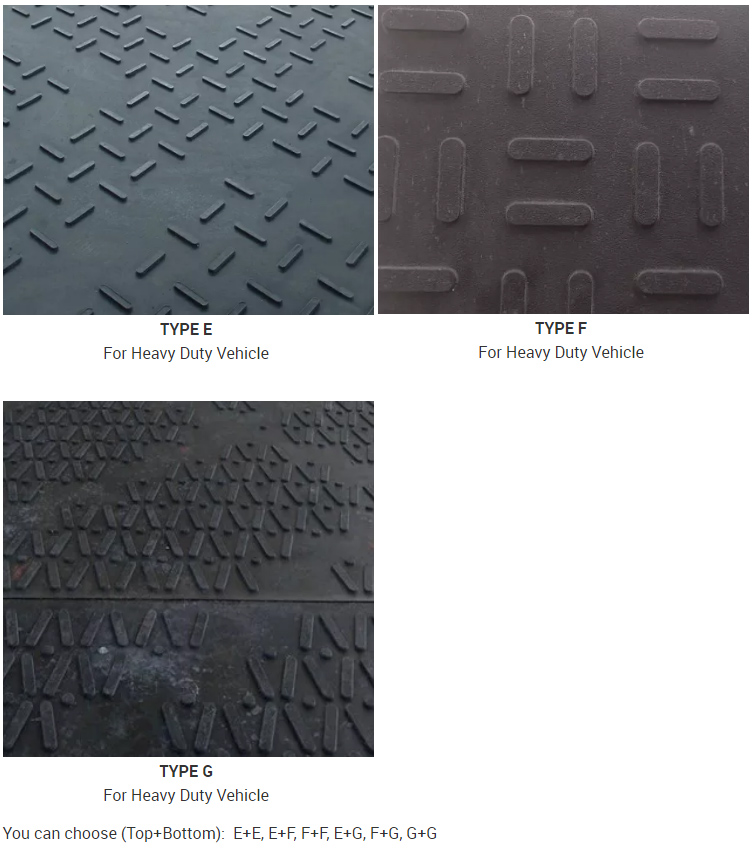

Textures for option:

texture of compressing


Test Report of SGS for Compressing UHMWPE Ground Protection Mat

Connectors
4 TYPES OF JOINING FOR OPTION


Please contact me if you are interested: vincent@sdxxhg.com
