Plastic Plate Perforated Sheet PP Board Perforated Tiles Perforated Celling

Place of Origin Shandong, China
Plastic Modling Type： Extruding
Material ：PP ; PE ;UHMWPE
Color ：white/black/red/green/blue/customized
Product name ：Perforated Plastic Sheet
Application ： Celling;Projects

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Plastic perforated boards generally use PP boards, HDPE boards and PVC boards, among which PP boards are widely used in various occasions and have excellent characteristics.

Custom-tailored to your application: You will get our perforated plastic sheets individually for your application with different perforations,in almost every possible geometry as well as with different shapes, dimensions and free surfaces.

PP data sheet:

Properties	Unit	Test method DIN EN ISO/ASTM	Value
Mechanical
Density	g/cm³	527/D792	0.91
Tensile strength at yield	MPa	527/D638	30
Tensile strength at break	MPa	527/D638
Elongation at break	%	527/D638	>50
Modulus of elasticity in tension	MPa	527/D638	1600
Modulus of elasticity in flexure	MPa	178/D790
Ball indentation hardness	MPa	2039/1	80
Impact strength	kJ/m²	179/D256	No br.
Creep rupture strength after 1000 hrs with static load	MPa		22
Time yield limit for 1%elongation after 1000 hrs.	MPa		4

Detailed Photos

Product Advantage

Low density
Perforated sheets made of our thermoplastic materials are lighter than steel; depending on material our thermoplastics have a
densitiy of 0,92 g/cm³

Long lifetime
Nearly no moisture absorption, no rot, rotting and delamination

High temperature resistance:
Depending on the material our perforated sheets have a long term operation temperature up to 110 °C

High corrosion resistance
Depending on the material we offer your perforated sheets that are resistant to aggressive chemicals, UV- and weather resistant

PP（polypropylene）Sheet：

- Excellent chemical resistance

- Good soldering properties

- Good fatigue & wear resistance

- Anti-corrosion and Anti-Aging

- UV Resistance

- No delamination

- Good protection against stress cracking

- Very low water absorption

-Non-toxic

Applications

Food Manufacturing

Aquatic products

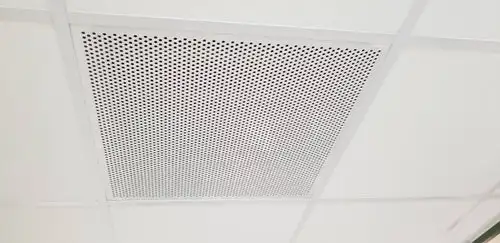

Perforated Tile

Our perforated sheets have proved themselves in numerous industries and applications:
* Food processing
* Autoclaves
* Chemical industry
* Tank building
* Leisure industry
* Oil & Gas
* Agriculture
* Construction industry
* Railway technology
* Logistics
* Automotive
* Interior and exterior architecture
* Furniture industry
* Warehousing
* Sound insulation
* Ventilation grilles
* Material separation: sieves, grids, vibration floors
* Degreasing systems in metal processing

Packing & Delivery

Customer's Feedback.

Company Profile

Established in 1989 , Shandong Ningjin Xinxing Chemical Co., Ltd. has become the largest manufacturer of engineering plastics in China. Xinxing's main engineered plastic products include UHMWPE sheets and rods , HDPE sheets and rods PP sheets and PVC sheets,etc . We can also supply a huge range of custom machined plastic parts such as Marine fender , Ground protection mats , Compositerig mats , as well as Ice rink series products like Ice rink dasher board , synthetic ice panel and hockey shooting pads.

Our industrial plastic products are widely used in North America, Europe, Australia , Southeast Asia, Africa , Russia and many organizations and government projects due to their outstanding properties. Xinxing engineered thermoplastics are chemical and extremely strong compared to common plastics.

We manufacture all plastic products in strict accordance with ISO9001 production standards. Meanwhile we passed UL factory Audit,SGS Quality Audit , and kinds of third party lab tests for different products , to guarantee a high-quality , high-standard , safe and healthy production environment for workers and customers .

We always share the things " Quality first , Customer first , keeping improving" to win more benefits for our partners .
Xinxing welcome for your cooperation !

Certification

Exhibition

Our Advantages

1.Professional manufacturing experience.

2.Virgin 100% material produced, high quality with good surface and color make ensured

3.ISO 9001:2008 certification.

4.Competitive price, In stock, Fast delivery, and Excellent service.

5.OEM available. Special character is available :According to different requirements with different application,color, size, shape and special specifications can be customized.
