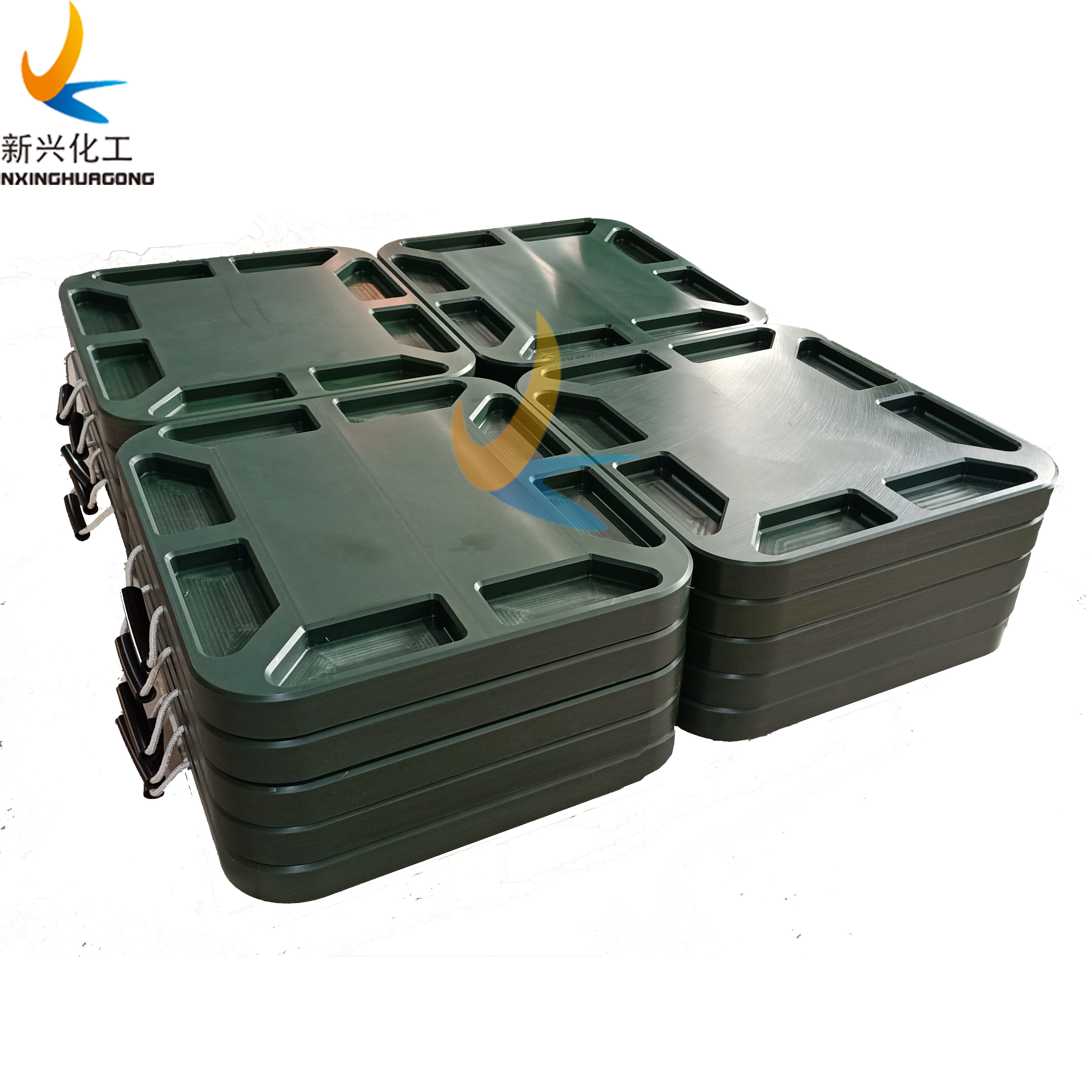

Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads

Material:PE
Kind:Hard Plastic Sheet
Water Absorption:1.5%~3.5%
Contraction Percentage:1.0%~2.5%
Tensile Strength:30~40MPa
Color:Black/Yellow/Blue/Green/Customized
Availability:
Quantity:
  • outriggerpads-001
  • Xinxing

Basic Info.

Model NO.
outriggerpads-001
Application
Crane/Truck/Heavy Equipment
Product Name
UHMWPE Crane Outrigger Pads
Size
Customized
Density
0.935g/Cm³
Heat Deflection Temperatur
85ºC
Transport Package
Pallet
Specification
customized
Trademark
XINXING
Origin
Shandong, China
HS Code
3920109090
Production Capacity
5000tons Per Year

Product Description

Product Description

Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane PadsTo permit maximum lifting capacity and improve safety, outrigger pads (also called outrigger board, outrigger mat, outrigger base) are used to provide support to terrain and mobile crane outriggers. When outrigger pad are used, the high pressures generated by cranes are distributed over a larger area, reducing the risk of a failure that may lead to a crane accident.

Our engineered plastic outrigger pads offer lightweight, strong, and solid support for your crane. Each pad is equipped with a durable wire handle to allow for easy storage and mobility.Unlike other materials, UHMWPE crane outrigger pad can be easily handled and positioned by one person. Our crane outrigger pad doesn't warp like wood or corrode like steel. They have no pilferage value, and with Xinxing lifetime replacement guarantee, we're confident they won't break.

Crane UHMWPE outrigger pad offers wear and strength, while providing noise, vibration and super grip for steady crane operation, protects the street or any other surface on which your crane must rest. It is ideal for impact or scratch sensitive materials like a gymnasium floor.

Xinxing has supplied crane, concrete and paving equipment users with high quality outrigger pads to keep their trucks steady. We stock a wide range of round and square pads. Custom sizes are also available. Xinxing is ISO 9001:2008 certified, and has 30 years of plastics manufacturing and fabricating experience. You can expect top quality products and service when you order from Xinxing. To ensure the crane proper support and maintaining a level condition, you must know how much weight is exerted on the outriggers. Xinxing's sales staff is primarily composed of engineers ready to help you decide the size outrigger pads needed for your crane.

UHMWPE data sheet:

Item
Test method
Unit
UHMWPE 1000-V
UHMWPE1000-DS
Density
ISO 1183-1
g/cm3
0.93-0.95
0.95-0.96
Yield Strength
ASTM D-638
N/mm2
15-22
15-22
Breaking Elongation
ISO527
%
>200
>100
Impact Strength
ISO179
Kj/m2
130-170
90-130
Abrasion
ISO15527
Steel=100
80-110
110-130
Shore Hardness
ISO868
Shore-D
63-70
63-75
Friction Coefficient
(Static state)
ASTM D-1894
Unitless
<0.2<>
<0.2<>
Operating Temperature
-
ºC
-80 to +80
-80 to +80
       Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads

 Round Crane Outrigger Pads                          Cribbing Blocks                                  Brushed Surface Outrigger Pads


  Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads

  Square Grooved Outrigger Pads                               Yellow Pads With Round Groove            Square Outrigger Pads With Square Groove

Product Advantages
Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads
1.Available in various sizes to suit your project needs and requirements.

2.Colour, size, and company branding are all custom options.

3.Carry handles make pads easy to transport, install, and store..

4.Our Crane Pads do not splinter and are unbreakable under normal working conditions.

5.They do not absorb water and can be used in all weather conditions.

6.Each pad has a high resistance to vertical pressure.

7.Like most products, they are long lasting and have an extended life span compared to other materials.
1. Highest abrasion resistance of any polymer, 6 times more wear resistance than steel

2. Anti-weather & anti-aging

3. Excellent chemical & corrosion resistant,Stable chemical property and can endure the corrosion of all kind of corrosive medium and organic solvent in certain range of temperature and humidity.

4. Superior impact resistant and vibration-absorption; Low water absorption

5. Temperature range: -269ºC~+85ºC; Doesn't become fragile even under -180ºC.

6. UV resistance and long service life

7. Good performance in resisting environment stress crack
Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads
Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads




1, LIGHT WEIGHT

- 1/7 of the weight of steel
- 1/4 of the weight of aluminum - Can easily be handled by one person


2, STRONG & RESILIENT
- Handle up to 3000 psi of compressive load
- Resist breakage and will not splinter
- Will not crack due to slight variations of the ground- Retain their shape
- Prevent "bird baths" on the pavement
-Material has a memory, does not mushroom or warp


3, COST EFFICIENT
-The longer use life than crane
- cheaper materials must be replaced many times during the life of your        crane
- No pilferage value
- Scrap dealers won't pay a penny to the thief
- Competitively priced
- Volume discounts available, call for pricing


4, CORROSION and RUST RESISTANT
- Zero Water Absorption
- No weight increase due to exposure to the elements or wet ground
- No rotting or weakening of the product


6, QUALITY GUARANTEED
- Manufactured in ISO 9001:2008 Factory with over 30 years of                     manufacturing and fabricating experience
- If you break an outrigger pad under normal conditions, We will replace it    free of charge
Application

Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads

The Application Of The Crane Outrigger Pads,As following Cranes:
Truck Crane ;Outrigger Pads; Crawler Crane; Outrigger Pads ;Rough Crane Outrigger Pads;  Boom Crane Outrigger Pads ;Concrete Pump Outrigger Pads ;Fire Truck Outrigger Pads ;Utility Truck Outrigger Pads ;Tree Trimmer Outrigger Pads ;Aerial Equipment Outrigger Pads.
Packaging & Shipping

Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads

Company Profile



Polyethylene Crane Outrigger Pad Virgin/Recycled UHMWPE Truck /Heavy Equipment Support Jack Pads PE Plastic Mobile Crane Pads

Our Advantages

1.Professional manufacturing experience.


2.Virgin 100% material produced, high quality with good surface and color make ensured

3.ISO 9001:2008 certification.

4.Competitive price, In stock, Fast delivery, and Excellent service.

5.OEM available. Special character is available :According to different requirements with different application,color, size, shape and special specifications can be customized.
