Soccer Rink Wall PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board

Material: PP
Kind: Hard Plastic Sheet
Water Absorption: <0.01%
Contraction Percentage: 1.0%~2.5%
Tensile Strength: 30~40MPa
Density: 0.96g/Cm³
Availability:
Quantity:
  • FB-001

  • Xinxing

Advantages



- suitable for any ice rink size

- high quality execution

- different heights and radii

- space-saving storage

- fast assembly / disassembly

- doors, gates, radii can be individually configured and positioned

- usable as advertising space

- can be used in the summer as an inline hockey ban


Specifications of floorball rink

Rink size and segments quantity

The 40 by 20 meters size rink needs the following number of individual segments: 52 pcs of the 2 m, 4 pcs of the 1 m and 4 pcs of the rounded corners. For the individual needs for different quantity, please contact us to find out how many pieces do you need.

A 40 m long side of the rink need 18 pieces of the 2 m and 1 piece of the 1 m segment. A 20 m long side of the rink need 8 pieces of the 2 m and 1 piece of the 1 m segment. A rounded corner is expected to be 1,5 m long on each rink side out of an imaginary corner point at an angle of 90°.

The weight of segments

The 2 m piece: 8,8 kg

The 1 m piece: 4,4 kg

The rounded Corner - 9,5 kg

Weight of the set: approximately 515 kg

Storage and shipment

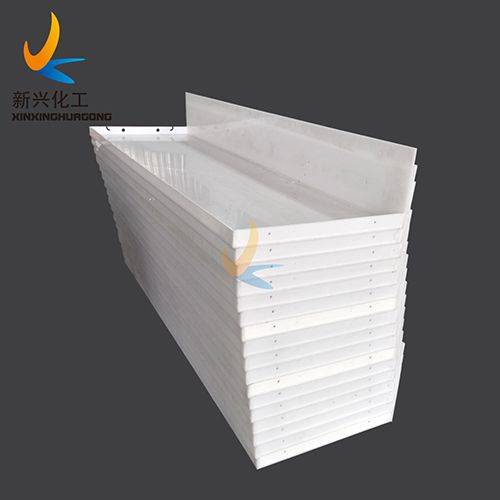

The rink is stored

leisurely in horizontal position, with the maximum 10 pieces being stacked, one bottom edge over another.

Stacking additional pieces over this standard 10-piece pile is not recommended as shape alterations in bottom pieces might occur.

on trolley (for ground 40 x 20 you need 2x trolleys)

PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink WallPP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink Wall

Every piece is hand crafted by expert tradesmen with the highest quality materials to ensure quality and durability and comes with a 5 years warranty. Ideal for either indoor or outdoor backyard rinks, arenas, commercial or residential projects. Easily transported and assembled and stored in the off season. Comes with all required connection hardware. Constructed of 1/2'' thick high density polyethylene facing, specially treated for UV protection and warping.

 Comes in 48''H standard heights: Modular pieces allow for complete customization and scalability for any size rink.



Optional colors:

1 Blue cap rail, yellow kicking board, White facing colour

2 Blue cap rail, Red kicking board, White facing colour

3 Any color you need



Available as either steel or aluminum construction, all of our dasher board systems are custom designed, manufactured and installed by us to your specifications. When you purchase a dasher board system from XINXING CHEMICAL you are guaranteed to get the best quality product at a competitive price.


  • Retrofit or new construction

  • Aluminum and steel dasherboard systems

  • Permanent and portable systems

  • Stainless steel hardware standard on all systems

  • Powder coated panels available any colour for both aluminum and steel frames

  • Prefabricated or on-site build

  • Demountable systems for easy conversion in multi-purpose facilities

  • Supported or seamless systems available

  • Contact us today to discuss your needs or to receive a quote based on your specific requirements.

PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink Wall

Comes in 48''H standard heights. Modular pieces allow for complete customization and scalability for any size rink.
Custom lengths available on request.

Colour Options:
  1. Blue Cap Rail, Gold Kick Plate, White Facing Colour

  2. Blue Cap Rail, Red Kick Plate, White Facing Colour

  3. Any color you want

 Application:


Our XINXING HDPE(High Density Polyethylene) dasher boards allows for indoor and outdoor soccer, inline hockey, football, ice skating and other sports to be programmed in your building or outdoor with little changeover required.



The properties of HDPE :



Property

Unit

Value

Density

g/cm3

0.93-0.96

Average molecular weight

 g/mol

3million- 10 million

Tensile strength (23°C in air)

MPa

22

Breaking strength

MPa

42

Tensile strain at break

%

600

Charpy impact strength (notched)

mJ/mm2

No break

Ball indentation hardness

N/mm2

42

Shore D hardness

--

65-70

Abrasion

%

70-80, steel = 100

Static Friction Coefficient

--

0.16

Kinetic Friction Coefficient

--

0.10

Water Absorption

--

NIL

Elongation at break at 23 degress

%

300

Temperature resistance

°C

-269 to +85

Melt Temperature

°C

130-140




PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink Wall
PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink Wall
PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink Wall
PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink Wall

Construction

Frame: hot-dip galvanized steel construction
Height: optionally 100 or 120cm
Cladding: white 10 mm PE plates
Handrail: blue 12mm PE strips
Radii: optionally 2.5 / 4.0 / 6.0m or without radius in square design
Kick Plate: yellow 10mm PE plate
Mounting: optionally freezing / screwing on

Advantages

- suitable for any ice rink size
- high quality execution
- different heights and radii
- space-saving storage
- fast assembly / disassembly
- doors, gates, radii can be individually configured and positioned
- usable as advertising space
- can be used in the summer as an inline hockey band

Packaging
1. pallet with carton.
2. Plastic pallet with carton.
3.  wooden pallet with wooden case.
4. According to customer requirements.
PP Weld Floorball Rink Barriers Polypropylene Floorball Fence Board Soccer Rink Wall




her Boards, Hockey Boards, Arena Rink Systems, Arena Boards for Ice Rinks, Inline Skating/rinks, arenas,dasher board for sledge hockey systems uhmwpe

the most safe dasher board,  the most safe dasher board, Dasher board systems for Portable Ice Rinks One complete ice rink dasher board and glass system  HDPE Kick Plate, Dasher Board, Top Stripes UHMWPE/HDPE Shooting Pad with routered edges



snowmobile skis uhmwpe sled hockey rink board,Dasher board assembly Multiple Dasher Board Signage,Indoor Arena Zamboni Signage ice hockey Portable Dasher Boards  in a variety of configurations,real Dasher Boards  One complete ice rink dasher board and glass system
