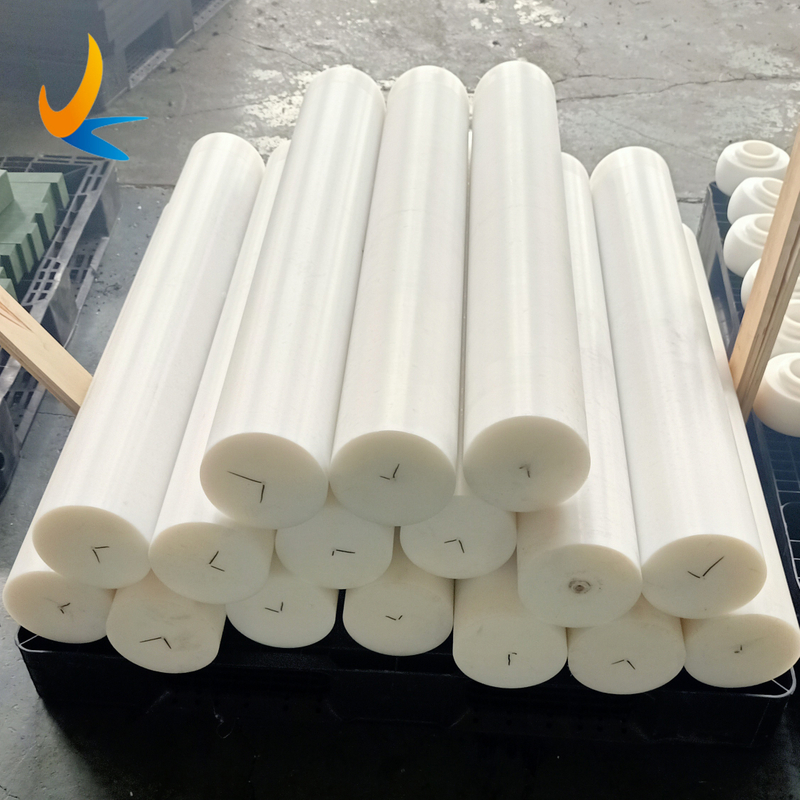

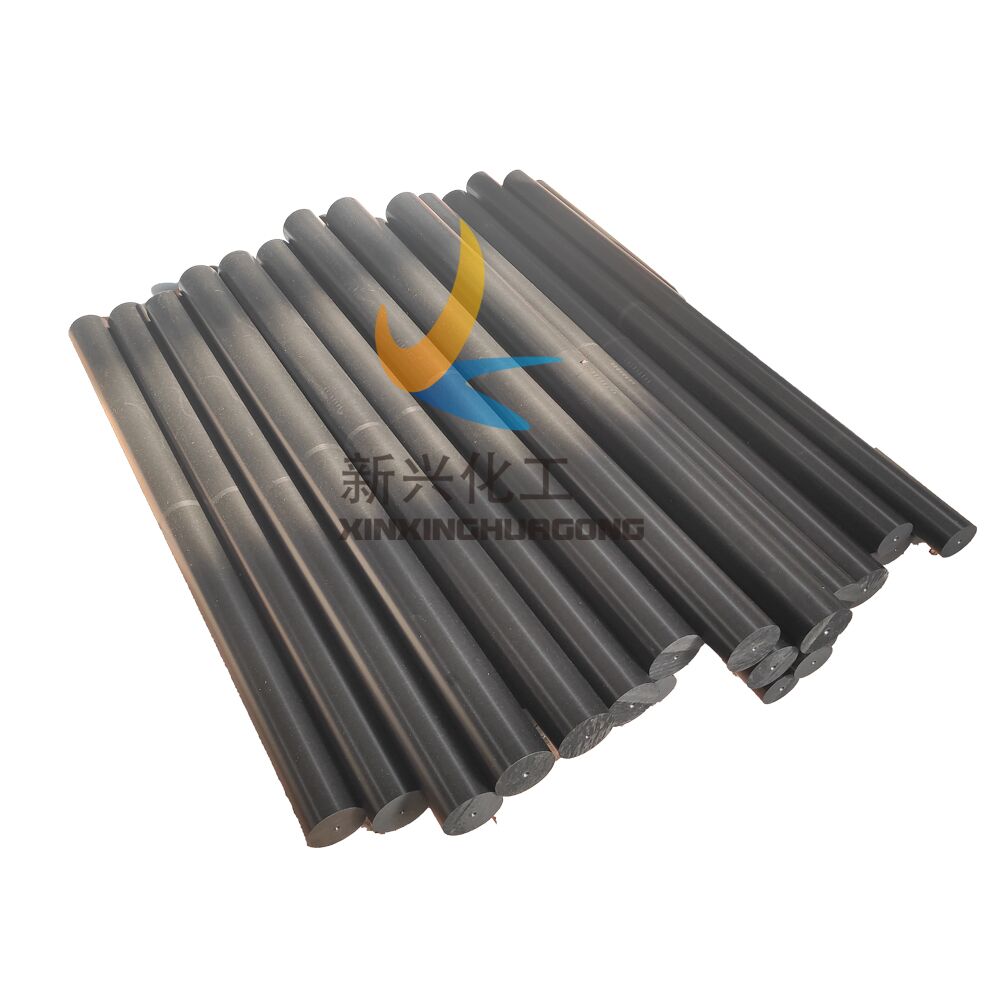

UHMW Polyethylene Round Rod | UHMWPE Rod
Xinxing
UHMW Polyethylene Round Rod | UHMWPE Rod
Ultra-high-molecular-weight polyethylene (UHMWPE, UHMW) is a very tough material, with the highest impact strength of any thermoplastic presently made.
UHMWPE is odorless, tasteless, and nontoxic. It embodies all the characteristics of high-density polyethylene (HDPE) with the added traits of being resistant to concentrated acids and alkalis, as well as numerous organic solvents.
UHMWPE is highly resistant to corrosive chemicals; has extremely low moisture absorption and a very low coefficient of friction; is self-lubricating; and is highly resistant to abrasion, in some forms being 15 times more resistant to abrasion than carbon steel.
Its coefficient of friction is significantly lower than that of nylon and acetal and is comparable to that of polytetrafluoroethylene (PTFE, Teflon), but UHMWPE has better abrasion resistance than PTFE. We have own production lines of UHMWPE material and CNC machines, are able to provide one-stop service.
| Material Properties | Standard | Unit | Value |
| Average molecular weight | g /mol | Approx 4.5*106 | |
| Density | ISO1183 | Kg/m3 | 922-942 |
| Water absorption at 23℃until saturation | ISO62 | % | <0.01 |
| Material Properties | Standard | Unit | Value |
| Tensile stress at yeild (tensile strength) | ISO527 | MPa | ≥17 |
| Enlongation at break | ISO527 | % | ≥300 |
| Tensile modulus | ISO527 | MPa | ≥700 |
| Impact strength (Charpy)at 23℃ | ISO179 | Kj/m2 | No break |
| Notched impact strength (Charpy)at 23℃ | ISO11542-2 | Kj/m2 | ≥80 |
| Ball indentation hardness | ISO2039-1 | N/mm2 | 30-35 |
| Shore-Hardness D,15 s value | ISO868 | 60-65 | |
| Coefficient of friction | Approx.0.2 | ||
| Abrasion(Sand-Slurry) | 80 | ||
| Themal properties | Standard | Unit | Value |
| Melting point DSC ,10k/min | ISO3146 | ℃ | 135-138 |
| Vicat softening point | ISO306 | ℃ | 80 |
| Coefficient of linear themal expansion Between 23 and 80℃ | ISO11359 | K-1 | approx 2*10-4 |
| Themal conductivity | ISO52612 | W/[m*k] | approx 0.4 |
| Use Temperature (max.) | ℃ | 80 | |
| Use Temperature (briefly) | ℃ | 90 | |
| Use Temperature (min.) | ℃ | -200 | |
| Electrical properties | Standard | Unit | Value |
| Relative permitivity at 100 Hz | IEC 60250 | - | 2.1 |
| Dissipation factor at 100 Hz | IEC60250 | - | 3.9*10-4 |
| Volume resistivity | IEC60093 | Ohm*m | >1012 |
| Surface resistivity | IEC60093 | Ohm | >1012 |
| Dielectric strength | IEC60243 | KV/mm | 45 |
The information contained in this technical date sheet can not be constructed as a promise or guarantee of specific properties of our products.Any determination of suitability of a particular material and part design for any use contemplated by the user is the sole responsibility of the user. The information contained in this technical date sheet is based on present knowledge and may be subject to change without further notice.
Machined Parts from UHMWPE Rod
