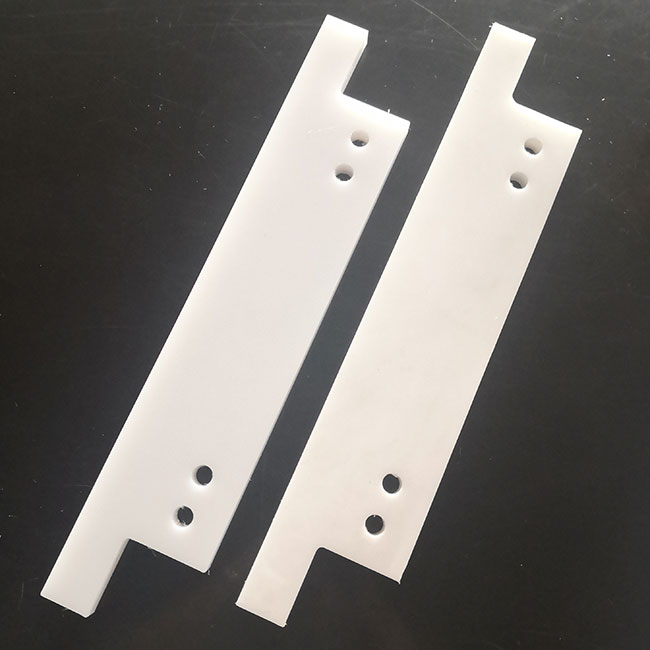

UHMWPE drag conveyor paddles| Drag flight
Shandong Ningjin Xinxing Chemical Co.,ltd can make drag conveyor paddles to fit any shape or make of conveyor. Drag flights can be made out of UHMW depending on the temperature of the material being handled, and are precision cut for easy installation.
GENERAL INFORMATION
Material：
UHMW, natural – USDA/FDA Approved Food Grade
UHMW, reprocessed black
Tivar88, cross linked for added strength andabrasion resistance.
Stamped or machined
Operating Temperature Range: -120 f +o 225 f
Installation:
When Installing, place flat steel washer on the front side of the flight next to the plastic.
Flat Bottom Drag Flights (Paddles)
Advantages of UHMWPE drag conveyor paddles| Drag flight :
Strong will not break
Abrasion resistant to outlast other materials
Flexible but returns to original shape
Chemical resistant won’t rust or corrode
Sanitary – USDA/FDA Approved
Economical
Heat and cold resistant
Moisture resistant – prevents clogging
Self Lubricating
TYPICAL DETAILS REQUIRED
1) Customers Description (Manufacturer, Drawing # etc)
2) Material Type & Thickness (eg. UHMW, HDPE, Nylon,; if food grade required)
3) Size of flight: **Height **Width **Radius
4) Number of Holes ** Diameter Position of Holes **Width Spacing (centre to centre) **Height
5) Cut-Out Size: ** Width **Height
6) Bevel of Edge: Yes No Other Bevel (Specify)
7) Quantity Required
8) any additional information
Application:
| 1 | Thermal power | coal handling, storage of coal and warehousing chute lining |
| 2 | Coal processing | Sieve-plate, filter and U-underground coal chute |
| 3 | Concrete | cement raw and finished product silo silo lining |
| 4 | Grain | food storage or chute lining |
| 5 | Mining | sieve plate, chute linings and wear anti-bonding part |
| 6 | Chemical engineering | corrosion and wear resistance mechanical parts |
Reference key words:
UHMWPE Conveyor Paddle
UHMWPE wear resistance belt scraper for conveyor system
UHMW-PE Drag conveyor chain paddle
UHMW-PE Paddle for conveyor chain
UHMWPE drag conveyor paddles| Drag flight
