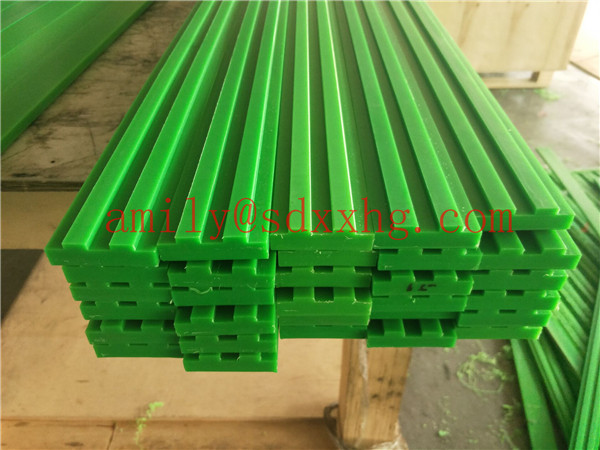

UHMWPE Chain guide profiles is a thermoplastic engineering plastic. It combines the superior performance of all plastic, resistant to abrasion, impact resistance, chemical resistance, self-lubricating, low temperature
Silent operation to support and guide the chain, reduce chain friction, reduce noise Self lubricity carefully selected materials, good lubricity, low vibration and noise reduction, smooth transportation
Product name | UHMWPE Chain guide profiles | |||
Color | natural/Green/Blue/Black | |||
Material | UHWMPE | |||
Length | Standard/as your requirement | |||
Type | T type, CT type, TU type, TS type, CTS type, U type, CU type, K type, CK type, CKG type, CKG 14H type, CKG 15V type, CKG 16H type, ETA type, R type CRG type | |||
Chain type | Simplex, duplex, triplex | |||
Application | Machinery industry/medical apparatus/mining industry/ Catering light industry ect | |||
Material Advantage | 1. High wear resistance 2. High impact strength 3. Good self lubrication 4. High chemical stability 5. Completely hygienic and non-toxic, can be used in contact with food and medicine | |||
Property | Unit | UHMWPE |
Physical Properties | ||
Density | g/cm3 | 0.96 |
Water Absorption | % | < 0.01 |
Maximum Working Temperature | ℃ | 90 |
Minimum Working Temperature | ℃ | -269 |
Mechanical Properties | - | - |
Breaking Strength | N/mm2 | >39 |
Ultimate Tensile Strength | MPa | 38 |
Break Elongation | % | 350 |
Impact Strength(v notch) | mJ/mm2 | >132 |
Bending E-Modulus | MPa | 760 |
Shear Strength | MPa | 33 |
Ball Indent. Hardness | N/mm2 | >41 |
Shore Hardness | Shore D | 65 |
Xinxing can also produce the UHMWPE chain guides as per customer drawings.
Welcome customer to send inquiry to amily@sdxxhg.com
