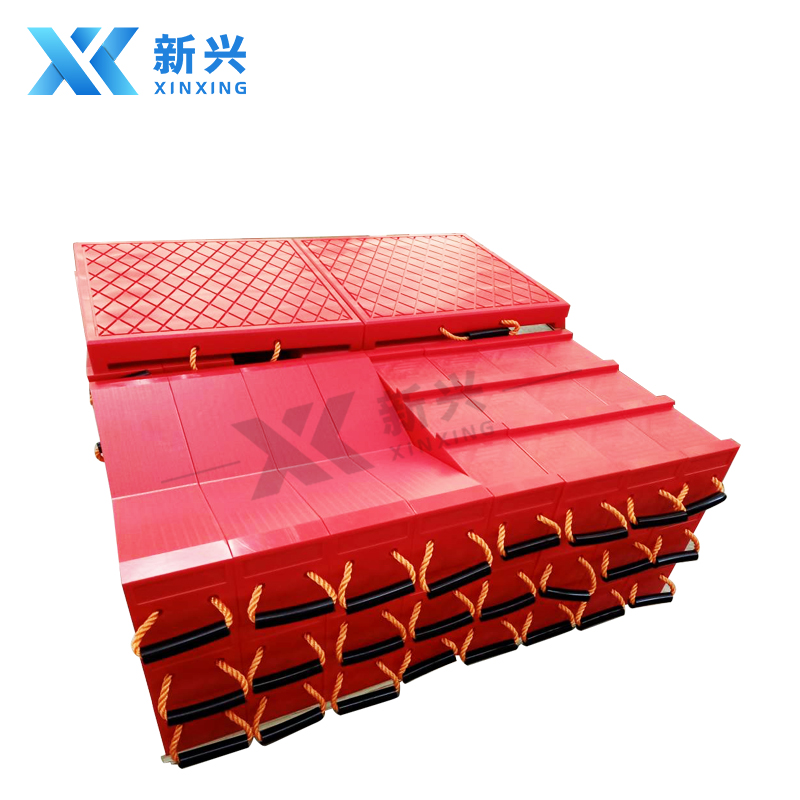

Anti-slip Interlocking Heavy Equipment Temporary Support Crane Stacker Cribbing Blocks

Our cribbing blocks are made out of High-Density Polymer and are designed to be strong, stable, and resistant to deformation under heavy pressure. The blocks are cut to specific dimensions and stacked in a pyramid or square formation to form a stable base for heavy equipment or loads. Cribbing blocks are an important tool for maintaining safety in heavy equipment operations. Cribbing Blocks can be used as trmporary support under heavy objects.For use in construction,heavy equipment,vehicle,and machinery support.
Availability:
Quantity:
  • Heavy duty cribbing blocks

  • Cribbing Blocks

  • 3920109090

Heavy duty cribbing blocks designed to support, stabilize and protect the ground from downward forces, and are commonly used in jacking and lifting applications. Use our super stacker cribbing block system to create a safe set-up for use under stabilizers and outrigger feet to assist with leveling equipment. It's compact size means you can quickly and safely build a stable crib to the desired height. Our super stacker cribbing block system offers long-lasting performance with minimal maintenance, and are a much safer alternative to wood.


Features of Cribbing Blocks:
*Interlocking cribbing block and aggressive non-slip surface.
*Lightweight with two rope handles for easy lifting and handling.
*Solid construction for High Working Load Limit,can up to 100t load bearing capacity.
*Quickly and safely build stable cribs to support loads.
*Made from extremely high quality, heavy duty UHMWPE (Ultra High Molecular Weight Polyethylene).
*Offers protection against water, corrosion and splintering.Resistant to oil, fuel, and most common industrial chemicals and Does Not Splinter Like Wood Cribbing.

*It is important to use cribbing blocks that are appropriate for the load being supported and to follow safe lifting practices to prevent accidents and injuries.


Crbbing blocks:

QQ图片20220606092329QQ图片20220707155854QQ图片20220706171207

Base plate of cribbing blocks:

QQ图片20220707155854QQ图片20220707155740


Specifications of Cribbing Block Set:

12PCS Super Stacker Cribbing Blocks:
Size(inch)
Weight(lbs)
Color
Capacity(Tonnes)
6" x 7" x 24"
31lbs
Customized
55
6PCS Super Stacker Cribbing Blocks:
Size(inch)
Weight(lbs)
Color
Capacity(Tonnes)
6" x 7" x 24"
15.5lbs
Customized
30
2PCS Base Plate of Cribbing Block:
24" x 24"x2"
38lbs
Customized

Other size can be customized as your requirements.

Besides the heavy duty cribbing blocks,we also can provide:

crane outrigger pad

Double Color HDPE Sheet

ground protection mat

Marine Board;

Composite Rig Mats;

Marine Fender Pad,etc.


Welcome to email Judy@sdxxhg.com or call us (+86 13176848975) for more details of heavy duty UHMWPE composite crane outrigger pads.
