UHMWPE Liner

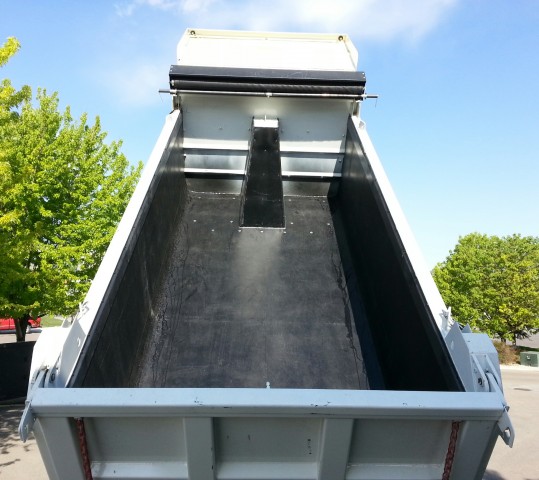

UHMWPE (Ultra High Molecular Weight Polyethylene) is lining material that is used to reduce flow problems of bulk solids in bins, hoppers, chutes, truck beds and bulk material handling for the Mining Industry.
Benefits include:
Very High Impact Strength
Exceptionally low friction
Low water absorption
Chemical Resistant
Wear and abrasion resistant
UV Stability
High Operating Temperature
Economic Advantages
Lower Cost for lining an existing bin is about one third of the cost of construction steel.
Lower Weight: only 1/7 of steel sheet, makes installation simpler.
Longer Life Span: In the sand slurry test UHMWPE is significantly longer than conventional steel.

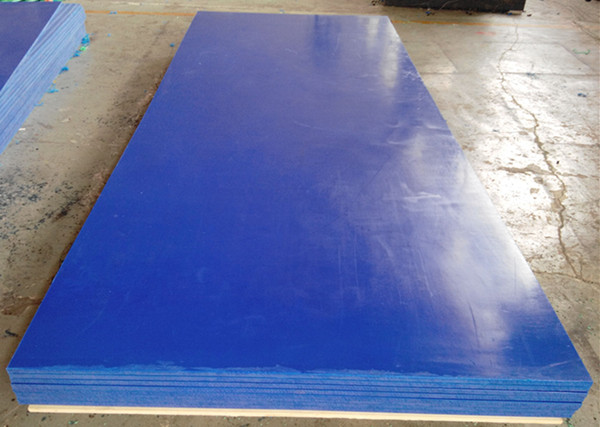

Size: 1000 mm x 1000 mm, 1000 mm x 2000 mm
Thickness: 3 mm - 100 mm
| Material Properties | Standard | Unit | Value |
| Average molecular weight | g /mol | Approx 4.5*106 | |
| Density | ISO1183 | Kg/m3 | 922-942 |
| Water absorption at 23℃until saturation | ISO62 | % | <0.01 |
| Material Properties | Standard | Unit | Value |
| Tensile stress at yeild (tensile strength) | ISO527 | MPa | ≥17 |
| Enlongation at break | ISO527 | % | ≥300 |
| Tensile modulus | ISO527 | MPa | ≥700 |
| Impact strength (Charpy)at 23℃ | ISO179 | Kj/m2 | No break |
| Notched impact strength (Charpy)at 23℃ | ISO11542-2 | Kj/m2 | ≥80 |
| Ball indentation hardness | ISO2039-1 | N/mm2 | 30-35 |
| Shore-Hardness D,15 s value | ISO868 | 60-65 | |
| Coefficient of friction | Approx.0.2 | ||
| Abrasion(Sand-Slurry) | 80 | ||
| Themal properties | Standard | Unit | Value |
| Melting point DSC ,10k/min | ISO3146 | ℃ | 135-138 |
| Vicat softening point | ISO306 | ℃ | 80 |
| Coefficient of linear themal expansion Between 23 and 80℃ | ISO11359 | K-1 | approx 2*10-4 |
| Themal conductivity | ISO52612 | W/[m*k] | approx 0.4 |
| Use Temperature (max.) | ℃ | 80 | |
| Use Temperature (briefly) | ℃ | 90 | |
| Use Temperature (min.) | ℃ | -200 | |
| Electrical properties | Standard | Unit | Value |
| Relative permitivity at 100 Hz | IEC 60250 | - | 2.1 |
| Dissipation factor at 100 Hz | IEC60250 | - | 3.9*10-4 |
| Volume resistivity | IEC60093 | Ohm*m | >1012 |
| Surface resistivity | IEC60093 | Ohm | >1012 |
| Dielectric strength | IEC60243 | KV/mm | 45 |
